Description

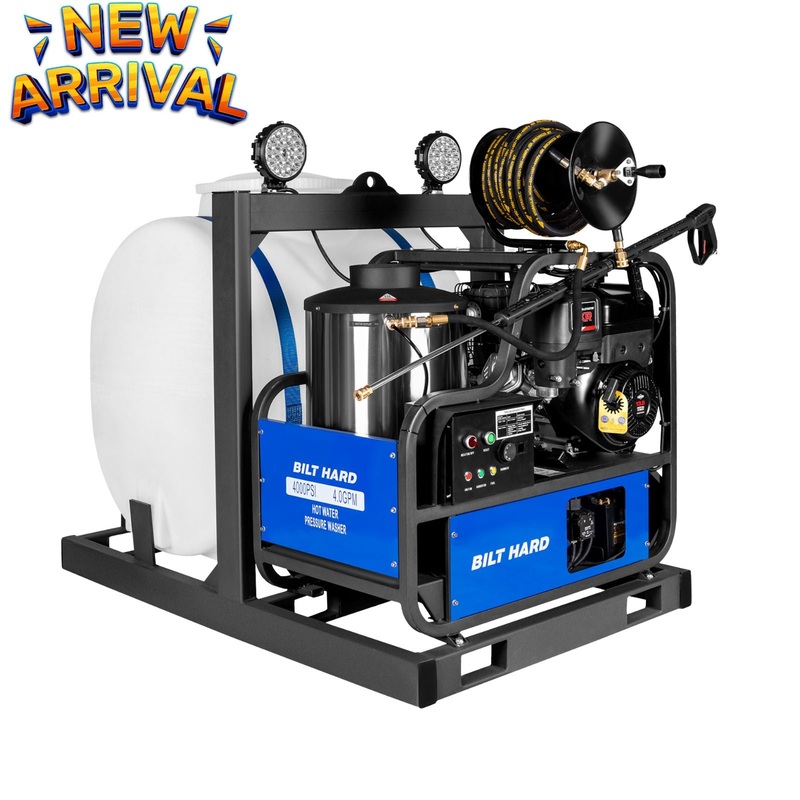

B&S Engine Hot Water Skid Mount Pressure Washer
4.0 GPM 4000 PSI 300,000 BTU 175 Gallon Platform
Engineered for sustained commercial performance, this fully integrated skid mount system delivers the heat, flow, and durability required for demanding cleaning environments.
Industrial Powertrain
At its core is the Briggs & Stratton 420cc (13.5 HP) engine, built for continuous-duty operation.
A cast iron cylinder sleeve, forged crankshaft, OHV configuration, and dual ball bearings ensure long-term durability under load.
Electric start with included battery allows fast, reliable ignition, while vibration-isolated mounting improves operational stability during extended work cycles.
4.0 GPM / 4000 PSI Performance
Delivering the ideal balance of flow and pressure, this system is designed for efficient surface coverage and heavy-duty impact.
Direct-drive power transfer and a professional-grade triplex plunger pump with oil bath crankcase provide consistent output and long service life.
300,000 BTU Hot Water System
The diesel-fired burner produces hot water up to 200F (93C), dramatically improving grease and oil removal.
An insulated heating coil system enhances thermal retention and efficiency, ensuring stable temperature performance in demanding conditions.
Fully Welded 175-Gallon Skid Platform
This is a purpose-built mobile cleaning platform not a bolt-together frame.
The heavy-duty welded skid integrates a 175-gallon water tank for extended operation. Forklift pockets allow efficient loading and transport on trucks or trailers.
Professional-Grade Configuration
Delivered complete and ready for deployment:
-
3/8″ x 50′ high-pressure hose
-
36″ spray gun & wand assembly
-
Quick-connect nozzle set
-
Hose reel
-
LED work lights
Designed for fleet washing, heavy equipment cleaning, construction, agriculture, and industrial maintenance.
