Description

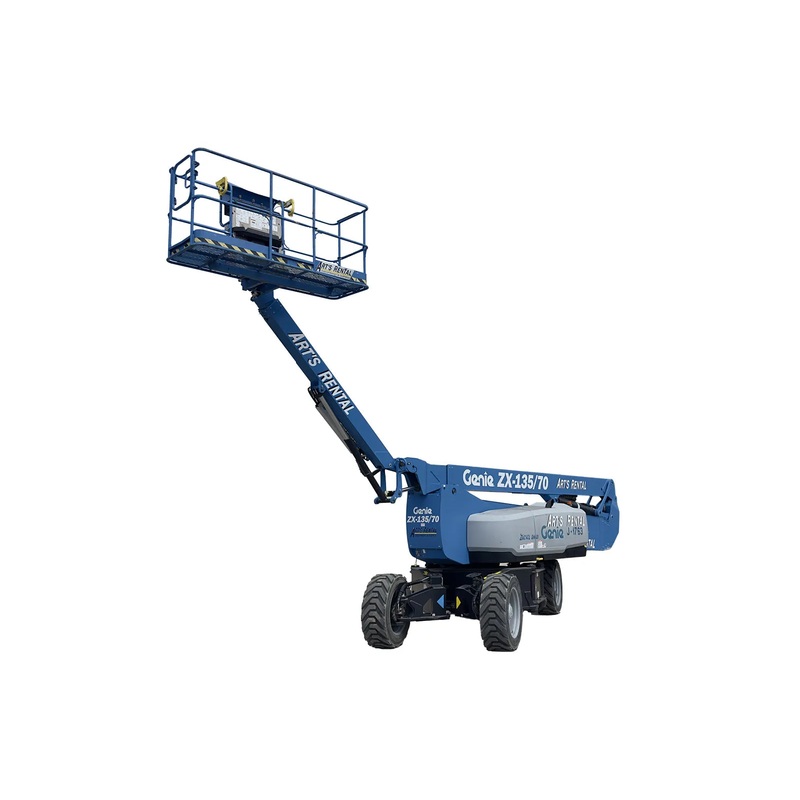

MODEL- GENIE..ZX-135/70 ARTICULATING BOOM LIFT
- DIMENSIONS- Stowed L= 42′ 5″ W= 8′ 2″ H= 10′ 1″ Width w/ Axle Extended= 16′ 6″
- WEIGHT- 45,200 lbs.
- WORKING HEIGHT- 141′
- PLATFORM HEIGHT- 135′
- HORIZONTAL REACH- 59′ 2″
- BELOW GROUND REACH- 19′ 3″
- PLATFORM DIMENSIONS- 8′ x 36″
- PLATFORM CAPACITY- 600 lbs.
- PLATFORM ROTATION- 160
- JIB RANGE- 110
- TURNTABLE ROTATION- 360
- UP & OVER CLEARANCE- 32′ 6″ (Riser Retracted)/ 75′ 6″ (Riser Extended)
- TAIL SWING- 1′ 1″ (Axle Extended, Riser Up)
- TURN RADIUS- 28′ 1″ (Axle Retracted -Outside-), 24′ 1″ (Axle Extended -Outside-)
- TRAVEL SPEED- 3 MPH Stowed/ .68 MPH Raised
- DRIVE/STEER- 4-Wheel
- TIRES- Foam Filled All Terrain 445/65 D22.5
- GRADEABILITY- 45% -Stowed Only-
- GROUND CLEARANCE- 15″
- WHEELBASE- 15′ 6″ (Axle Extended), 16′ 6″ (Axle Retracted)
- ENGINE- DEUTZ Diesel 74-HP
- FUEL CAPACITY- 40 Gallons
