Description

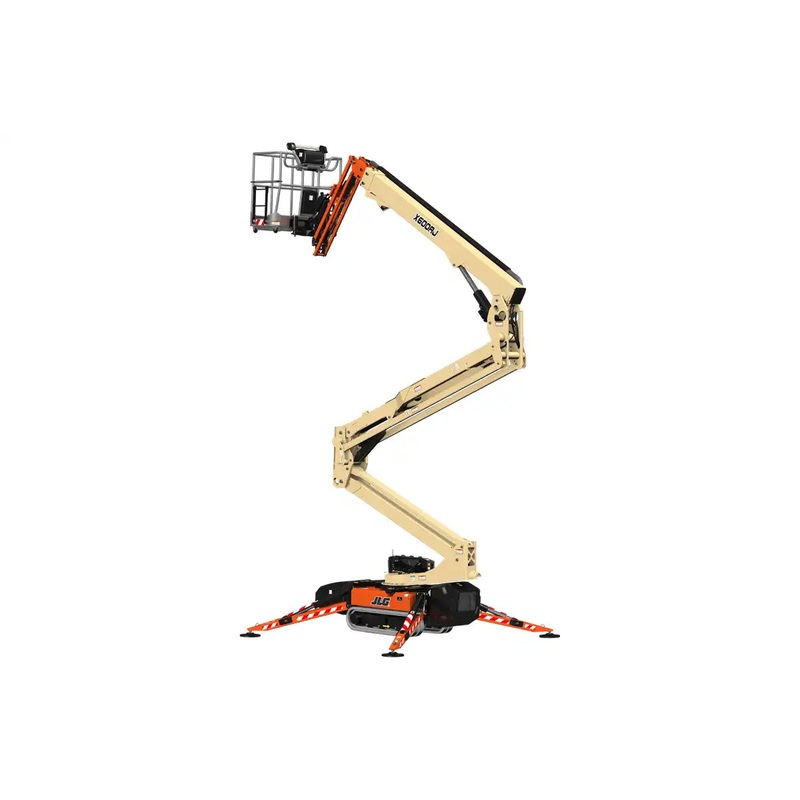

MODEL- JLG..X600AJ ARTICULATING BOOM..TRACK..ELECT.
- DIMENSIONS- Stowed L= 16′ 5″/ W= 31″, 43″ w/ Tracks Extended/ H= 6′ 6.5″
- OUTRIGGER FOOTPRINT- 10′ 7″ x 10′ 7″ (Self Leveling)
- WEIGHT- 6,350 lbs.
- WORKING HEIGHT- 65′ 3″
- PLATFORM HEIGHT- 59′ 3″
- HORIZONTAL REACH- 30′
- PLATFORM DIMENSIONS- 58″ x 30″
- PLATFORM CAPACITY- 500 lbs.
- PLATFORM ROTATION- 124
- JIB RANGE- 89 (0 to -89)
- TURNTABLE ROTATION- 360 Non-Continuous
- UP & OVER CLEARANCE- N/A
- TURN RADIUS- Zero
- TRAVEL SPEED- .9 MPH
- TRACKS- Non Marking, Length- 4′ 10″
- GRADEABILITY- 28% -Stowed Only-
- SLOPE TOLERANCE- 15
- GROUND PRESSURE- 9.28 PSI onTracks / 44 PSI on Outriggers
- POWER- 72 Volts DC 100 Amp hr. Lithium Ion Battery
