Specifications
- Channels: 1608 channels
- Supported Constellations: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, NavIC/IRNSS
- Initialization: <10s
- RTK Accuracy: H: 8 mm + 1 ppm; V: 15 mm + 1 ppm
- PPK Accuracy: H: 3 mm + 1 ppm; V: 5 mm + 1 ppm
- IMU Type: 4D Auto-IMU
- Display: 2 LED; 0.96″ OLED Display
- UHF Radio: 5w, 410-470 MHz
- Operating Hours: Up to 25 hours
- IP Protection: IP67
- Power Source: (2)x 7.4V/7Ah Li-Ion Battery
- Operating Temperature: -40F to +149F (-40C to +65C)
Product Description

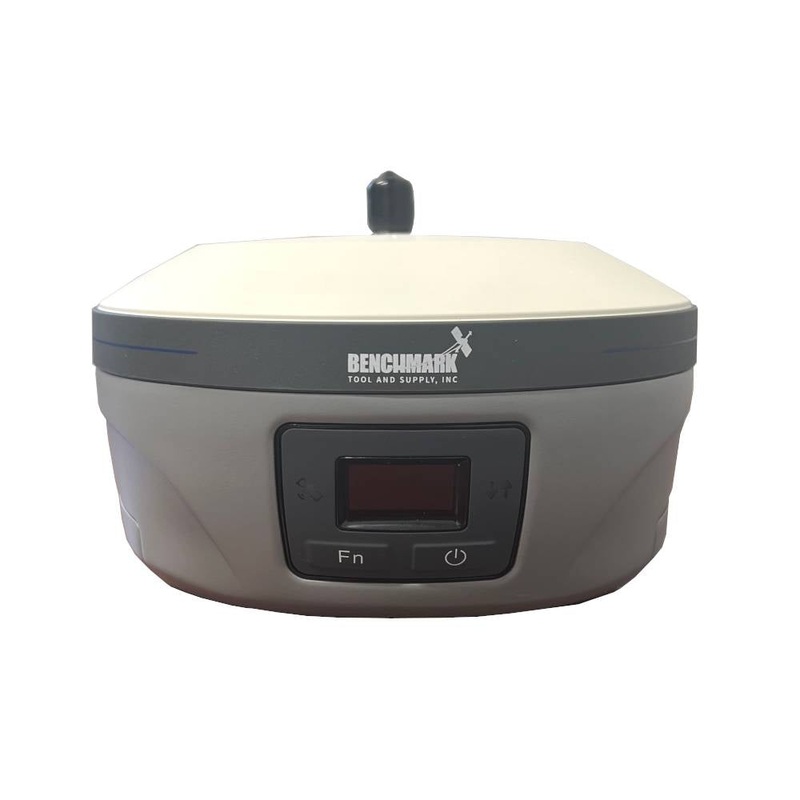

The Benchmark Supply eBase is a dedicated GNSS base station engineered for high-precision RTK operations in surveying and construction. With 1608 tracking channels, full constellation support, and robust correction output, it provides a solid foundation for any GNSS rover setup. The eBase is equipped with dual hot-swappable batteries offering up to 25 hours of runtime, while its IP67-rated housing ensures dependable performance in harsh environments. Integrated Bluetooth, Wi-Fi, 4G, and NFC simplify setup, data sharing, and remote access.
Benchmark Products – Innovation by CHC, Performance for You
Brochures and Manuals
- eBase GNSS Receiver Technical Datasheet
