Description
Specifications
- Channels: 1408
- Constellations: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
- RTK Initialization: Typically <10 seconds
- RTK Accuracy: H: 8 mm + 1 ppm RMS; V: 15 mm + 1 ppm RMS
- IMU Tilt Compensation: Up to 60
- Internal UHF Radio: 2W (410470 MHz), range up to 15 km (optimal conditions)
- Battery Life: Up to 34 hours
- Communication Interfaces: Bluetooth, Wi-Fi, NFC, 4G LTE
- Ports: USB Type-C, SIM slot, external antenna port
- Ingress Protection: IP67
- Shock Resistance: 2 m pole drop on concrete
- Operating Temperature: -40F to 149F (-40C to +65C)
Product Description
The Benchmark Supply’s i83 Rover Surveying Package (i83-RSV) delivers a complete field-ready RTK solution for high-precision data collection in topographic surveys, construction layout, excavation control, and post-construction verification.
At its core is the i83 GNSS receiver , a compact yet powerful rover featuring 1408 channels, multi-constellation support, and iStar 2.0 technology for fast, accurate satellite acquisitioneven in obstructed environments.
Equipped with an internal 2W UHF radio, the i83 offers a communication range of up to 15 km under optimal conditions and features advanced tilt compensation (up to 60) with minimal horizontal uncertainty, making it ideal for uneven terrain or hard-to-reach points. With up to 34 hours of battery life, it supports extended field sessions without interruption.
Paired with an 8″ Active5 Android Tablet preloaded with LandStar 8 software, this package allows for intuitive survey workflows, visual stakeout, and seamless cloud connectivity. The package also includes one-year subscription of Control Point Corrections TrueRTK (powered by Point One Navigation) for centimeter-level accuracy. Accessories such as a carbon fiber pole, wide base topo shoe, clamp, socket arm, and bipod make this bundle practical and ready to deploy straight out of the box.
Benchmark Products – Innovation by CHC, Performance for You

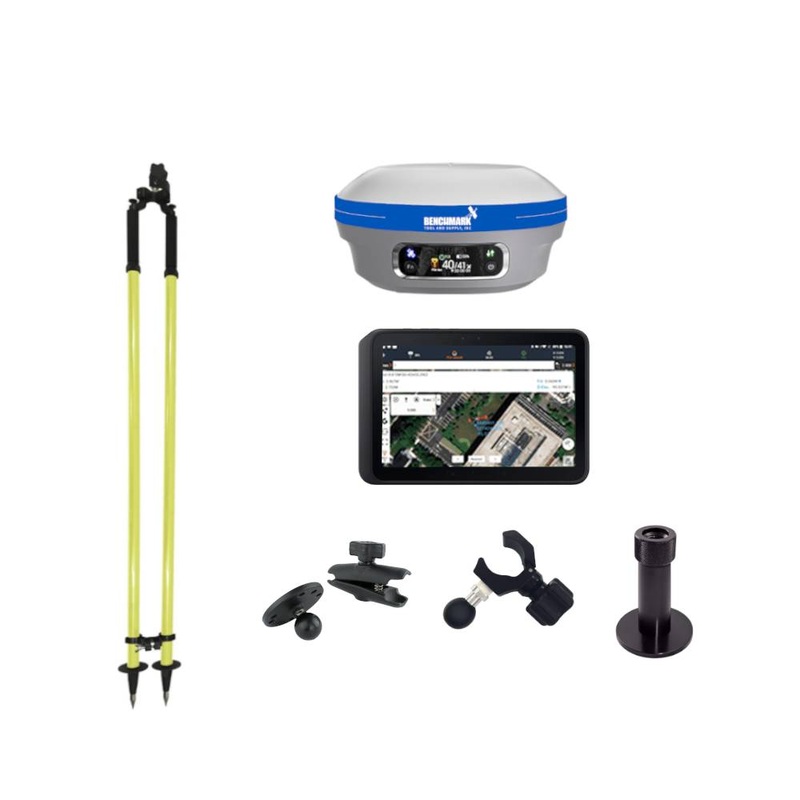

In the Box
- (1) i83 GNSS Receiver
- (1) 8″ Active5 Tablet
- (1) SitePro Pole Clamp w/ Ball and Socket (10-52160)
- (1) Socket Arm (RAM-B-103U)
- (1) LandStar 8 App
- (1) Tiger Supplies Wide Base Topo Shoe
- (1) Seco Thumb-Release Bipod – Fluorescent Yellow
- (1) Unicontrol Tablet Holder 8′
- CPC TrueRTK (1 Year Subscription)
- iSite 1 Year Support & Data Super SIM Plan
- Tablet Power Bank Kit
