Description

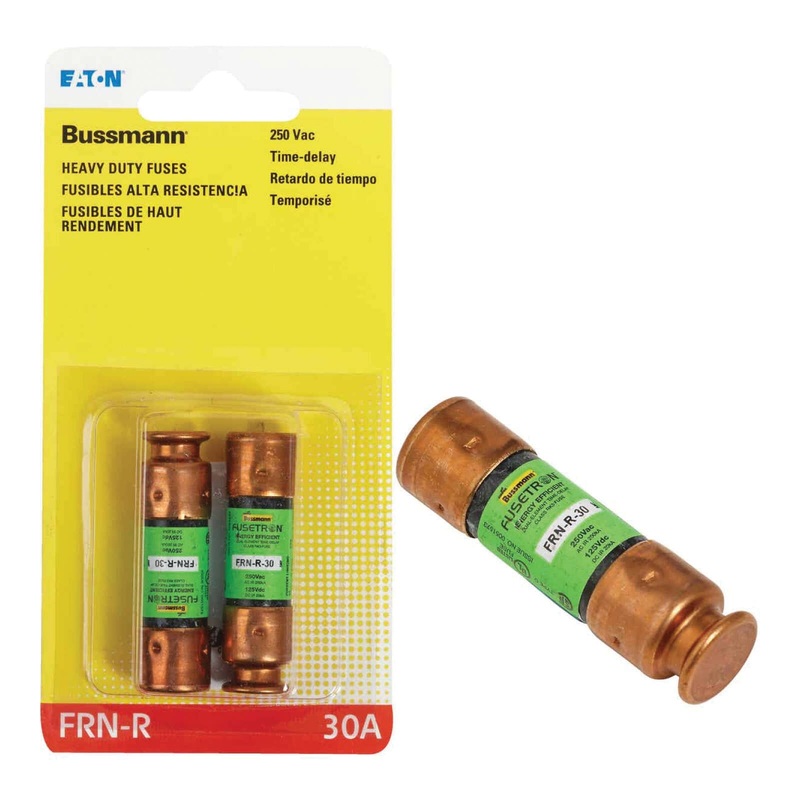

Bussmann Fusetron Time Delay Fuse, Indicating/Non-Indicating: Non-Indicating, 250 VAC/125 VDC, 30 A, Class: RK5, 200 kA Interrupt, 8 s Response, Dual, Cartridge Body Type, Ferrule Terminal, Holder Mount, 2 in Length, 0.56 in Width, 0.56 in Height, 9/16 in Dia
Features:
- Provides motor overload, ground fault and short circuit protection
- Helps protect motors against burnout from overloads
- Helps protect motors against burnout from single phasing on three phase systems
- Simplifies and improves blackout prevention (selective coordination)
- Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
- The overload element provides protection against low level overcurrent of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of 10 sec
Other Attributes:
- SKU: 3266434
- Indicating/Non-Indicating: Non-Indicating
- Voltage Rating: 250 VAC/125 VDC
- Amperage Rating: 30
- Class: RK5
- Interrupt Rating: 200
- Response Time: 8
- Element Type: Dual
- Body Type: Cartridge
- Terminal Type: Ferrule
- Mounting Type: Holder
- Length: 2
- Width: 0.56
- Height: 0.56
- Diameter: 9/16
Documents:
Catalog
