Description

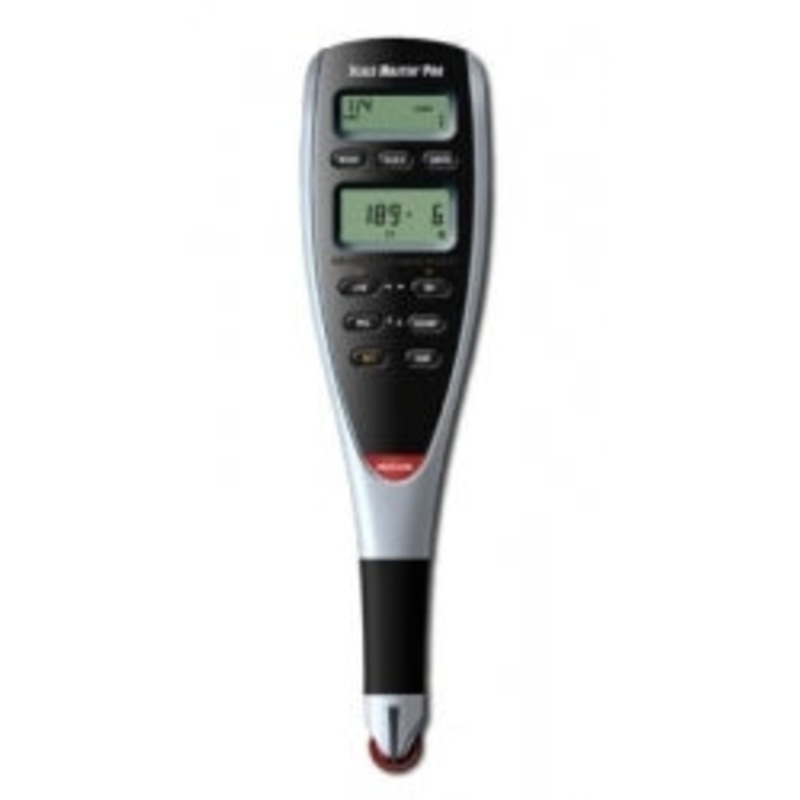

Scale Master Pro
Dimensional Math and Conversions
- Perform instant Linear, Rectangular Area and Volume Take-Offs; use it like a pen, just roll and measure!
- Convert between scales and dimensions
- Custom Scales: Six user-set custom scales. Calibrates to any plan and then stores that scale for future use. Perfect for scaling faxed or out-of-scale plans
- Calculate Rectangular Areas/Volumes (L x W x H). Roll and enter length of room, then width and instantly calculate square footage
Dedicated Functions
- 72 built-in scales; 39 Imperial (feet-inch) and 33 Metric
- Multiple dimensional units for versatility; select your favorite measurement units: Decimal, Feet, Feet-Inches, Decimal-Inches, Yards, Millimeters, Meters, Kilometers – including Square and Cubic formats of each
- Time Saving Utilities:
- Rolls distances in either direction and accepts dimensions as fast as you can accurately roll them
- Measures regular linear distances and shapes
- Subtract and Counter Feature lets you subtract if you roll too far. Also lets you count items (e.g. studs, outlets, etc.) and accumulate in memory
- Easy-to-read dual display shows your measurement in Feet/Inches or Metric
Includes
- Hard Cover Protective Case
- Complete User’s Guide
- (2) Long-Life Lithium Batteries (CR-2032)
- Full One-Year Limited Warranty
Tech Specs
- Size: 7.3″ x 1.9″ x 0.6″ (186 x 47 x 15 mm)
- Wheel Resolution: 0.025″ (0.635 mm)
- Wheel Composition: Celcon Polymer
- Weight (product only with battery): 2.1 oz (60g)
- Power: Two 3-Volt lithium (CR-2032) batteries (included)
- Display Type: LCD segment, 7-digit main display, 3-digit count, 5-digit scale display, with annunciator legends
- Display Dimensions: Upper: 0.62 x 1.22″ (15.8 x 31 mm) Lower: 0.79 x 1.22″ (20 x 31 mm)
- Accuracy: 2-4% based on user’s start & stop accuracy; 12 digit internal accuracy
