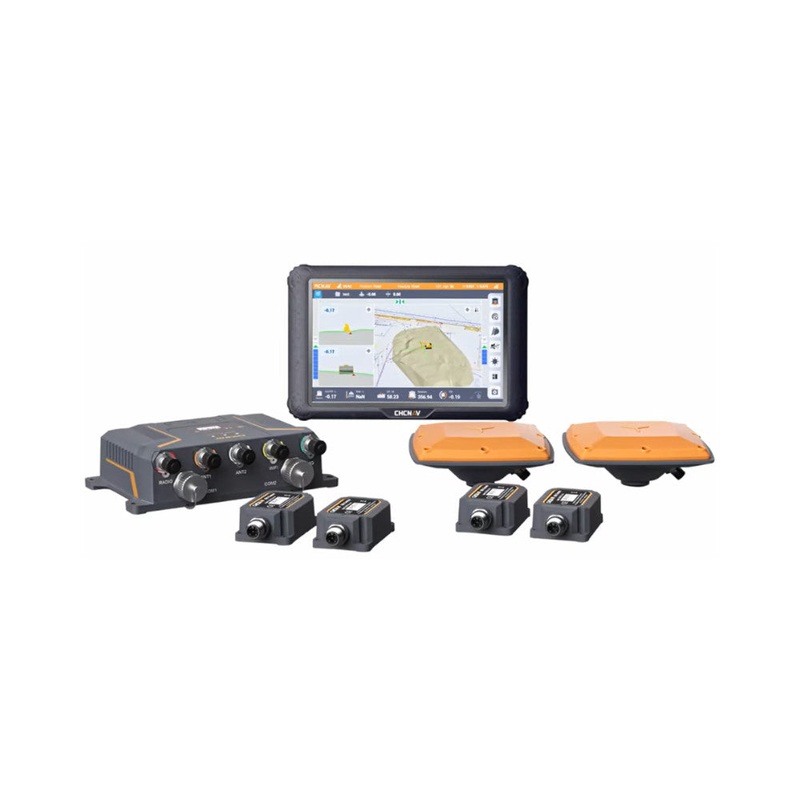

Name: CHCNav MCNAV TX73 3D Guidance System for Excavators
Brand: gomowerparts.com
SKU: KC84421757
Price: 37.25 USD
Availability: InStock

Description

Specifications

System Type: 3D excavator guidance with real-time RTK and IMU integration
GNSS Constellations: GPS, GLONASS, BeiDou, Galileo, QZSS
Supported File Formats: *.LandXML, *.DWG, *.DXF, *.CAL, *.JXL, *.LOC
Cloud Platform: iSite (remote data sync, troubleshooting, OTA updates)
Receiver (CHCNav MC300)
- RTK Accuracy: H: 8 mm + 1 ppm RMS; V:15 mm + 1 ppm RMS
- Ingress Protection: IP67
- Operating Temperature: -22F to 149F (-30C to +65C)
- Weight: 2.45 lbs.
Display (MCPad300)
- Screen: 10.1 touch screen (1920 1200 px)
- Operating System: Android 14, 8-core CPU up to 2.2 GHz, 6 GB RAM + 64 GB storage
- Ingress Protection: IP67
- Operating Temperature: -22F to 140F (-30C to +60C)
- Power: 736 V DC input
- Weight: 3.30 lbs.
IMU Sensor (IS300)
- RMS Accuracy: Dynamic 0.1, Static 0.05
- Shock: 50G/ 11 ms
- Ingress Protection: IP69K
- Operating Temperature: 40F to +167F (40C to +75C)
GNSS Antenna (AT315)
- Ingress Protection: IP68
- Gain: 40 2 dB
- Noise: 2 dB
- Shock: 40G/ 11 ms
- Operating Temperature: 40F to +167F (40C to +75C)

Product Description

CHCNav MCNAV TX73 is designed for demanding construction sites. The system gives operators full control of depth, slope, and alignment using advanced GNSS RTK receivers and IMU sensors. With instant bucket-tip feedback and real-time surface comparison, jobs finish faster, cleaner, and with fewer grade checks.

The TX73s powerful CAD-based 3D interface and color-coded maps let crews visualize progress directly in-cab. Operators can customize layouts, monitor cut/fill data, and switch effortlessly between 2D and 3D views. With broad attachment compatibilityincluding Engcon and Steelwrist tiltrotatorsthe TX73 adapts easily to complex projects. Its rugged hardwarefeaturing the MC300 receiver, IS300 IMU, and AT315 GNSS antennasensures reliability in harsh environments.
