Description

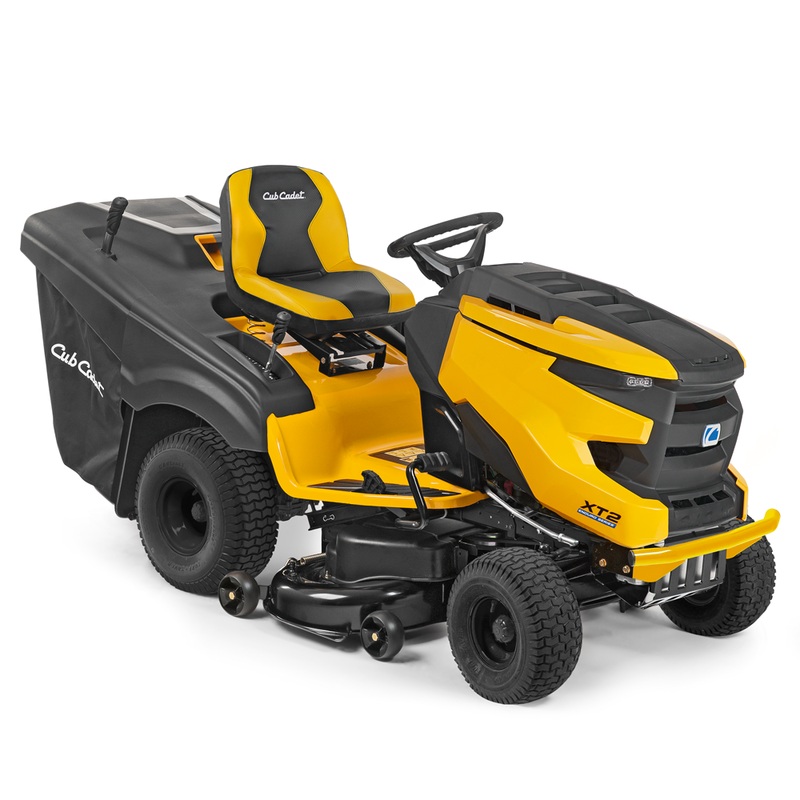

XT2 QR106 106CM / 42″
The XT2 QR106 features the Cub Cadet Tight Turn xTreme, where a turning radius of 17cm provides unsurpassed maneuverability in tight places and around the garden. The powerful and reliable V-Twin Kawasaki engine features a push button start and the hydrostatic drive system operated by foot pedal control provides a smooth and comfortable ride. It also features a 106cm / 42 cutting deck able to cut up to 8,000 m per hour. The integrated bag full system identifies when the large 320 litre grass bag is full and the blade shut off system lets you know it is full. The grass bag has a built in telescopic lever meaning that emptying it when full can be done without even getting out of the seat.
Specifications
|
|
|
|
| ENGINE |
XT2 QR106 |
|
| Engine |
Kawasaki |
| Engine displacement (cm3) |
726 |
| Rated power (kW/min-1) |
11,6 / 2,2 |
| Cylinders |
V-TWIN dual cylinder |
| Fuel tank capacity(l) |
11,4 |
|
| DRIVE SYSTEM |
|
|
| Transmission |
Hydrostatic |
| Air speed (max) |
Infinitely variable (f/r) |
| Control |
Foot pedal control |
| Cruise Control |
Standard |
|
| CUTTING SYSTEM |
|
|
| Mowing area (m2/h) |
8.000 |
| Cutting width |
106cm (42”) |
| Cutting height |
25-100 mm |
| Number of blades |
2 |
| Deck Engagement |
Electric PTO |
| Deck height positions |
12 positions |
| Deck wheels |
4 balls deck wheels |
| Wash nozzle / mulching plug |
Standard/(196-550-000) |
|
| DISCHARGE SYSTEM |
|
|
| Grass bag capacity (l) / accessory no. |
320/(196-555-603 Anti-Dust-System) |
| Bag lever / hardtop |
Rounded ergo telescopic handle / Plastic |
| Bag full indicator / Grass Deflector |
Deluxe w Blade Shutoff / (196-552-A000) |
|
| FRAME |
|
|
| Front axle |
Heavy-duty cast-iron |
| Front bumper |
Loop |
| Turning radius (cm) |
TIGHT TURN xTREME 17cm |
| Wheels (front/rear) (Zoll) |
15 x 6 Turf Saver / 18 x 8.5 |
| Wheel bearings |
Sleeve bearings |
| Frame |
Fully robotically-welded frame |
|
| ELECTRIC |
|
|
| Headlights |
LED |
|
| COMFORT |
|
|
|
| Seat type |
High Back Seat Cub Cadet |
| Seat adjustment |
Lever, angled,10 slide |
| Steering wheel |
Ergo Soft-Grip |
| Tool box / Cub holder |
Standard / Standard |
| 12V Plug |
|
| Mow in reverse |
Standard |
| Battery charger |
|
|
| DIMENSIONS |
|
|
| Noise values (dB) |
88 / 98 / 100 |
| Vibration value body (K-factor) (m/s2) |
1 / 0,5 |
| Vibration value hand-arm (K-factor) (m/s2) |
5 / 1,5 |
| Dimensions (L / W / H) (cm) |
250 / 110 / 118 |
| Weight net (kg) |
253 |
