Description
Specifications
- Magnification: 22x
- Accuracy: 1/4 in at 100 ft (6 mm at 30 m)
- Range: Up to 200 ft (60 m)
- Telescope Length: 10.5 in (26.5 cm)
- Minimum Focus: 4 ft (1.2 m)
- Aperture: 0.75 in (19 mm)
- Field of View: 2 at 100 ft (0.6 m at 30 m)
- Number of Lenses: 6
- Horizontal Circle Diameter: 3.62 in (92 mm)
- Horizontal Circle Graduation: 1
- Horizontal Circle Numbers: Every 10, 0900
- Vernier Reading: Direct to 15 minutes ()
- Center Type: Planar bearing
- Level Vial Sensitivity: 10 minutes per 2 mm
- Instrument Weight: 3.25 lb (1.5 kg)
- Tripod Thread: 5/8-11
Product Description

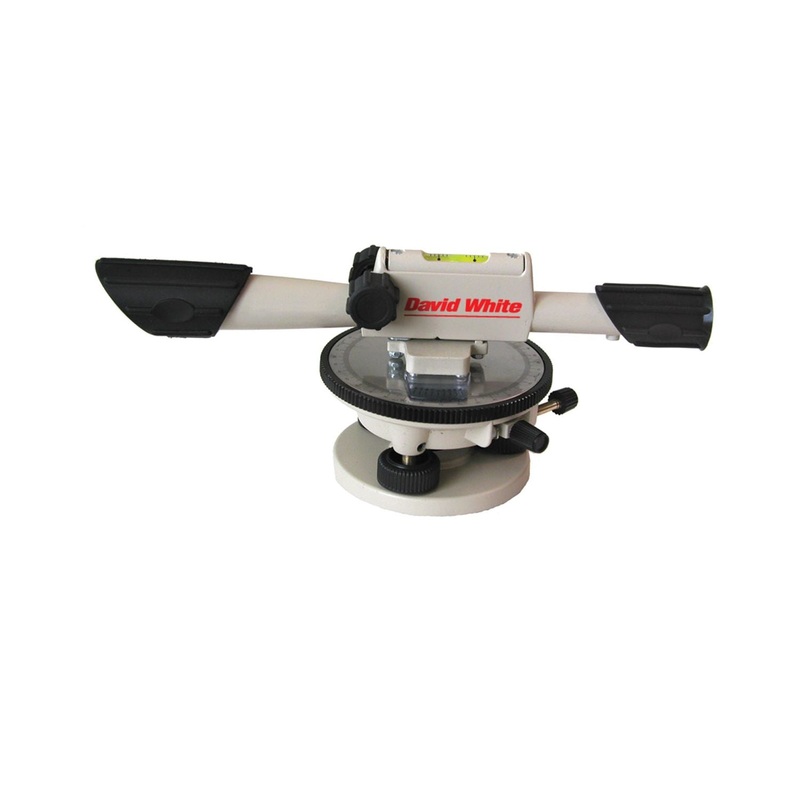

The David White L6-20 Meridian 22X Optical Level is designed for light construction applications that require reliable leveling and basic angle measurement. With a leveling accuracy of 1/4 inch at 100 feet and a working range of up to 200 feet, it supports elevation checks, site leveling, and general layout tasks on small to mid-size jobsites.
The instrument features a 22x telescope with a built-in sunshade to improve visibility in bright conditions. A horizontal circle graduated to single degrees with a vernier reading to 15 minutes allows controlled angle measurements, while the top-mounted leveling vial makes setup easier to view from a standing position. Horizontal lock and tangent screws provide smooth, precise movement during sighting.
In the Box
- Meridian Optical Level
- Plumb Bob
- Carrying Case
- User Guide
Brochures and Manuals
- David White 22-Power Meridian Optical Level Technical Datasheet
