Description
Specifications
- Magnification: 22x
- Accuracy: 1/4 in at 100 ft (6 mm at 30 m)
- Range: Up to 200 ft (60 m)
- Telescope Length: 10.5 in (26.5 cm)
- Minimum Focus: 4 ft (1.2 m)
- Aperture: 0.75 in (19 mm)
- Field of View: 2 at 100 ft (0.6 m at 30 m)
- Number of Lenses: 6
- Horizontal Circle: Graduated to 1 with vernier reading to 15 minutes
- Vertical Arc: 045 with 1 graduations
- Level Vial Sensitivity: 10 minutes per 2 mm
- Instrument Weight: 4.5 lb (2.0 kg)
- Tripod Thread: 5/8-11
Product Description

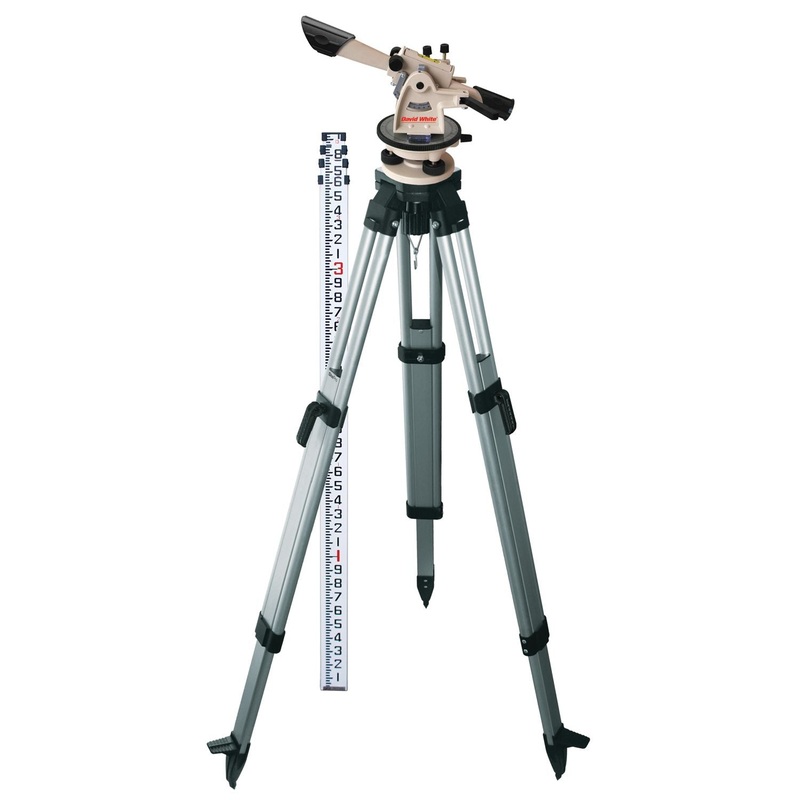

The David White LT6-900 Meridian 22X Optical Level-Transit is designed for light construction tasks that require dependable leveling and basic angle measurement. With a leveling accuracy of 1/4 inch at 100 feet and a working range of up to 200 feet, it is well suited for applications such as site leveling, layout, and elevation checks on smaller jobsites.
The instrument features a 22x magnification telescope with a built-in sunshade for clearer viewing in bright conditions. A horizontal circle graduated to single degrees with a vernier reading to 15 minutes allows controlled horizontal angle measurements, while the vertical arc supports vertical angle readings from 0 to 45 degrees. A top-mounted leveling vial improves visibility during setup, and horizontal lock and tangent screws provide smooth, precise sighting control.
In the Box
- Optical Level Transit
- Tripod
- Leveling Rod (Inch Graduation)
- Plumb Bob and Carrying Case
- Manual
Brochures and Manuals
- David White 22-Power Meridian Optical Level Transit Technical Datasheet
