Description
Specifications
- Magnification: 26x
- Accuracy: 1/16 in at 100 ft (1.6 mm at 30 m)
- Working Range: Up to 300 ft (90 m)
- Clear Objective Aperture: 1.4 in (36 mm)
- Setting Accuracy: 0.8 in
- Deviation for 1 km Double-Run Leveling: 1.5 mm
- Telescope Image: Erect
- Telescope Length: 8.3 in (210 mm)
- Shortest Focusing Distance: 1 ft (0.3 m)
- Field of View: 1 30
- Stadia Ratio: 100
- Compensator Leveling Range: 15
- Magnetic Dampening: Yes
- Sensitivity of Bubble: 8 / 2 mm
- Horizontal Circle Diameter: 4.3 in (108 mm)
- Horizontal Circle Graduation: 1
- Protection Rating: IP54
- Mounting Thread: 5/8-11
- Instrument Weight: 3.7 lb (1.7 kg)
Product Description

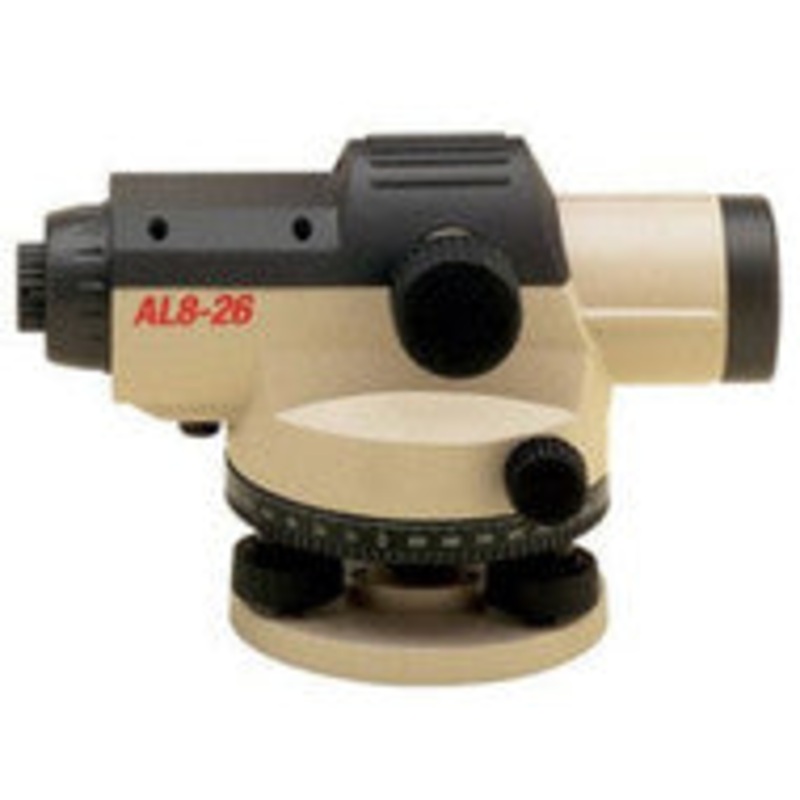

The AL8-26 26X Automatic Optical Level is designed for dependable leveling on construction and layout jobsites where accuracy and ease of use are essential. With an accuracy of 1/16 inch at 100 feet and a working range of up to 300 feet, it supports elevation checks, site leveling, and general grade work with consistent results.
The instrument features a 26-power telescope with a large aperture to improve light transmission and image clarity. The wire-hung, magnetically damped compensator automatically stabilizes the line of sight within 15 arc minutes, helping maintain accuracy on uneven terrain. An easy-to-read horizontal circle with white-on-black graduations and an infinite tangent screw allow smooth, controlled alignment during operation.
In the Box
- Auto Level
- Adjustment Tools
- Lens Cap
- Tripod
- 12 ft Leveling Rod (Inch Graduation)
- Plumb Bob and Carrying Case
- Manual
Brochures and Manuals
- David White 26-Power Automatic Level Transit Technical Datasheet
