Description
Specifications
- Laser Type: 3-plane rotary laser (1 horizontal 360, 2 vertical 90)
- Laser Diode: 635 nm, Class 2
- Horizontal Accuracy: 1/16 in at 100 ft (1.8 mm at 30 m)
- Vertical Accuracy: 1/8 in at 100 ft (3 mm at 30 m)
- Angle Accuracy: 20
- Leveling Type: Electronic self-leveling (4)
- Slope Capability: Single axis 7
- Working Range (With Detector): Up to 2,950 ft (900 m)
- Working Range (Without Detector): Up to 65 ft (20 m)
- Rotation Speeds: 400, 800, 2000 RPM
- Scanning Angles: 10, 45, 90
- Operating Time (Li-ion): 10.5 to 23 hrs
- Operating Time (Alkaline): 13 to 35 hrs
- Environmental Protection: IP55 (water/dust resistant)
- Operating Temperature: 14F to 112F (-10C to +45C)
- Storage Temperature: -4F to 158F (-20C to 70C)
- Power Supply: 4 C-cell alkaline or Li-ion rechargeable batteries
- Dimensions: 8.5 6.0 6.2 in (215 150 156 mm)
- Instrument Weight: 4.7 lb (2.07 kg)
Product Description
The LR 430HDV 3-Plane Rotary Laser is a high-performance 3D rotary laser designed for interior layout, alignment, and leveling applications that require multiple reference planes. It projects one full 360 horizontal plane and two 90 vertical planes, allowing crews to perform leveling, squaring, and alignment tasks from a single setup. With a leveling accuracy of 1/16 inch at 100 feet and a working range of up to 2,950 feet when used with a detector, it supports both close-range interior work and extended jobsite applications.
The system features three integrated rotary heads with built-in 635 nm diodes, delivering highly visible laser lines at variable rotation speeds up to 2,000 RPM. An electronic self-leveling system automatically levels within 4, while single-axis slope capability of 7 allows controlled grade adjustments when required. Multiple scan angles, beam positioning options, and selectable rotation speeds give operators flexibility across a wide range of layout tasks, all in a compact, ergonomic housing with simple single-button operation. Powered by standard C-cell alkaline or rechargeable batteries, the unit offers extended operating times and reliable performance in a durable IP55-rated enclosure.
In the Box

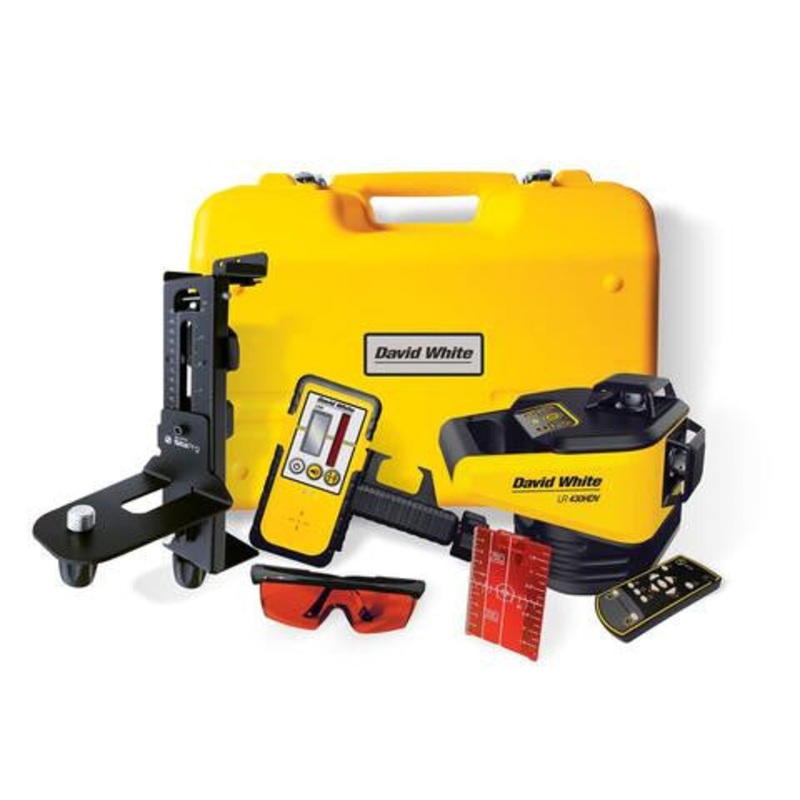

- 3-Plane Laser
- Detector with Bracket
- Remote
- Universal Mount
- Magnetic Target
- Glasses
- Rechargeable Battery/Charger Kit
- 4-C Alkaline Batteries
- Carrying Case
- User Guide
