Description
Specifications
- Magnification: 32x
- Accuracy: 1/32 in at 100 ft (1.0 mm at 30 m)
- Working Range: Up to 400 ft (120 m)
- Clear Objective Aperture: 1.6 in (40 mm)
- Setting Accuracy: 0.3 in
- Deviation for 1 km Double-Run Leveling: 1.0 mm
- Telescope Image: Erect
- Telescope Length: 8.3 in (210 mm)
- Shortest Focusing Distance: 1 ft (0.3 m)
- Field of View: 1 30
- Stadia Ratio: 100
- Compensator Leveling Range: 15
- Magnetic Dampening: Yes
- Sensitivity of Bubble: 8 / 2 mm
- Horizontal Circle Diameter: 4.3 in (108 mm)
- Horizontal Circle Graduation: 1
- Protection Rating: IP54
- Mounting Thread: 5/8-11
- Instrument Weight: 3.7 lb (1.7 kg)
Product Description
The AL8-32 32-Power Automatic Optical Level is built to make leveling tasks faster and more efficient on construction and layout jobsites. With an accuracy of 1/32 inch at 100 feet and a working range of up to 400 feet, it delivers reliable performance for elevation checks, site leveling, and grade work where precision matters.
A large 40 mm clear objective aperture provides a brighter, sharper image, while the 32x erect telescope ensures clear sighting over long distances. The wire-hung, magnetically damped compensator maintains the line of sight within 15 arc minutes of level, even when the instrument experiences minor vibrations. An easy-to-read horizontal circle with white-on-black graduations and an infinite tangent screw allow for smooth, controlled alignment during use.

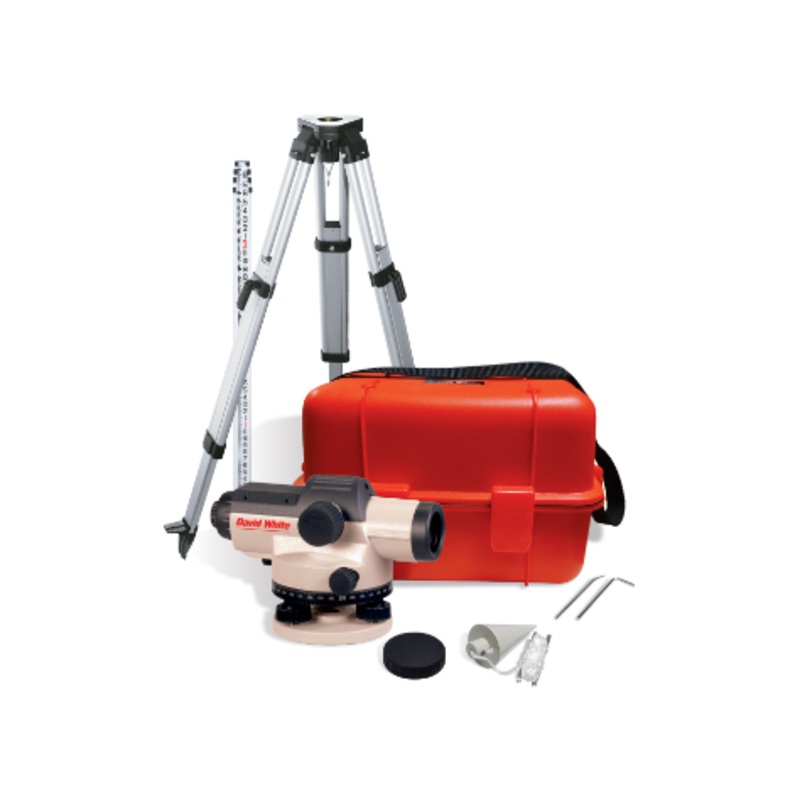

In the Box
- Auto Level
- Adjustement Tools
- Lens Cap
- Tripod
- 12 ft Leveling Rod (Inch Graduation)
- Plumb Bob and Carrying Case
- Manual
Brochures and Manuals
- David White 32-Power Automatic Level Transit Technical Datasheet
