Description
Specifications
- Angle Accuracy: 5 seconds
- Angle Measurement: Absolute encoding
- Minimum Reading: 1 / 5
- Angle Units: Degrees / mil / gon / V%
- Display: LCD, both sides
- Telescope Magnification: 30X
- Objective Aperture: 1.77 in (45 mm)
- Image: Erect
- Field of View: 130
- Resolution: 3
- Minimum Focus: 53 in (1.3 m)
- Stadia Constant: 100
- Tilt Compensation: Automatic, 3
- Plummet Type: Optical
- Plummet Magnification: 3X
- Plummet Field of View: 5
- Plummet Focusing Range: 20 in to infinity (0.5 m to infinity)
- Plummet Reticle: Crosshair
- Plate Vial Sensitivity: 30 per 2 mm
- Circular Vial Sensitivity: 8 per 2 mm
- Operating Voltage: 4.8 VDC
- Battery Type: 4 1.5V AA (Rechargeable Ni-MH)
- Operating Temperature: 4F to +122F (20C to +50C)
- Protection Rating: IP54
- Weight: 10.2 lb (4.6 kg)
- Dimensions: 6.5 6.1 13.4 in (164 154 340 mm)
Product Description

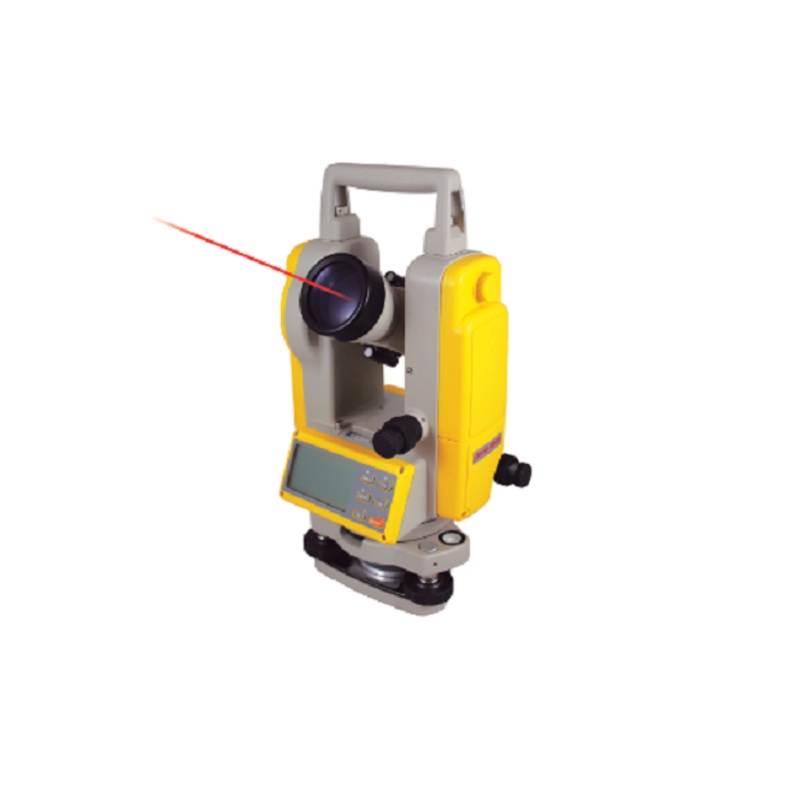

The David White DT8-05LS Digital Theodolite is built for precise alignment and angle measurement in construction and layout applications. Featuring 5-second accuracy and electronic angle measurement with dual LCD displays, it delivers clear, repeatable readings for horizontal and vertical angles. A built-in laser sight integrated into the telescope aperture allows fast and accurate alignment to targets, improving efficiency during layout work.
Coaxial clamp and tangent screws allow smooth, controlled adjustments during sighting and measurement. An optical plummet provides reliable centering over control points, while automatic tilt compensation helps maintain accuracy during setup.
In the Box
- Theodolite
- NiMh Rechargeable Battery Pack/Charger
- Alkaline Batterie Pack
- Tool Kit
- Rain Hood
- Plumb Bob and Carrying Case
- Manual
Brochures and Manuals
- David White 5 second Digital Theodolite with Optical Plummet Technical Datasheet
