Description
Specifications
- Range: Up to 400 ft (120 m)
- Leveling Accuracy: 3/16 in at 150 ft (4.75 mm at 45 m)
- Telescope Magnification: 26X
- Telescope Length: 8-1/2 in (216 mm)
- Minimum Focus: 6 ft (1.8 m)
- Aperture: 1.257 in (32 mm)
- Field of View: 1 9 @ 100 ft (54 cm @ 30 m)
- Number of Lenses: 8
- Stadia Ratio: 1:100 (glass reticle)
- Horizontal Circle: 4-5/8 in (117 mm), 1 graduations, 10 numbering, double vernier to 5 min
- Vertical Arc: 1 graduations, 10 numbering (45045), double vernier to 5 min
- Level Vial Accuracy: 110120 sec per 2 mm
- Plate Vial Accuracy: 360 sec per 2.5 mm
- Instrument Weight: 9.5 lb (4.31 kg)
- Tripod Mount: 5/8-11 (heavy-duty tripod required)
Product Description

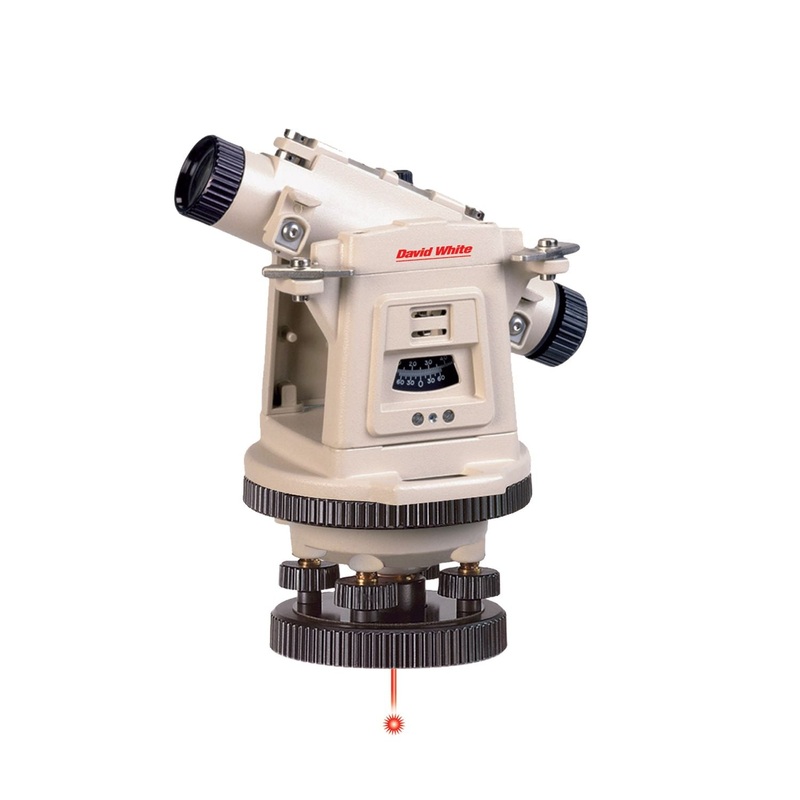

The David White LT8-300LP Universal Level-Transit is designed for accurate horizontal and vertical sighting in construction and layout applications where fast setup matters. Featuring a built-in laser plummet, this instrument allows quick, precise centering over control points, reducing setup time while maintaining dependable performance. With a working range of up to 400 feet and 3/16-inch accuracy at 150 feet, it delivers consistent results on active jobsites.
Smooth horizontal and vertical arcs with lock and tangent controls support controlled adjustments for precise angle measurement.
In the Box
- Optical Level
- Rain Hood
- Objective Lens
- Case
- Manual
Brochures and Manuals
- David White LT8-300LP Universal Level Transit with Optical Plummet Technical Datasheet
