Description
Specifications
- Range: Up to 400 ft (120 m)
- Leveling Accuracy: 3/16 in at 150 ft (4.75 mm at 45 m)
- Telescope Magnification: 26X
- Telescope Rotation: 360 continuous rotation
- Telescope Length: 8-1/2 in (216 mm)
- Minimum Focus: 6 ft (1.8 m)
- Aperture: 1.257 in (32 mm)
- Field of View: 1 9 @ 100 ft (54 cm @ 30 m)
- Number of Lenses: 8
- Stadia Ratio: 1:100 (glass reticle)
- Horizontal Circle: 4-5/8 in (117 mm), 1 graduations, 10 numbering
- Circle Lock: Prevents accidental horizontal movement
- Plate Vial: For rough leveling and general plummeting
- Tripod Mount: 5/8-11 (heavy-duty tripod required)
Product Description

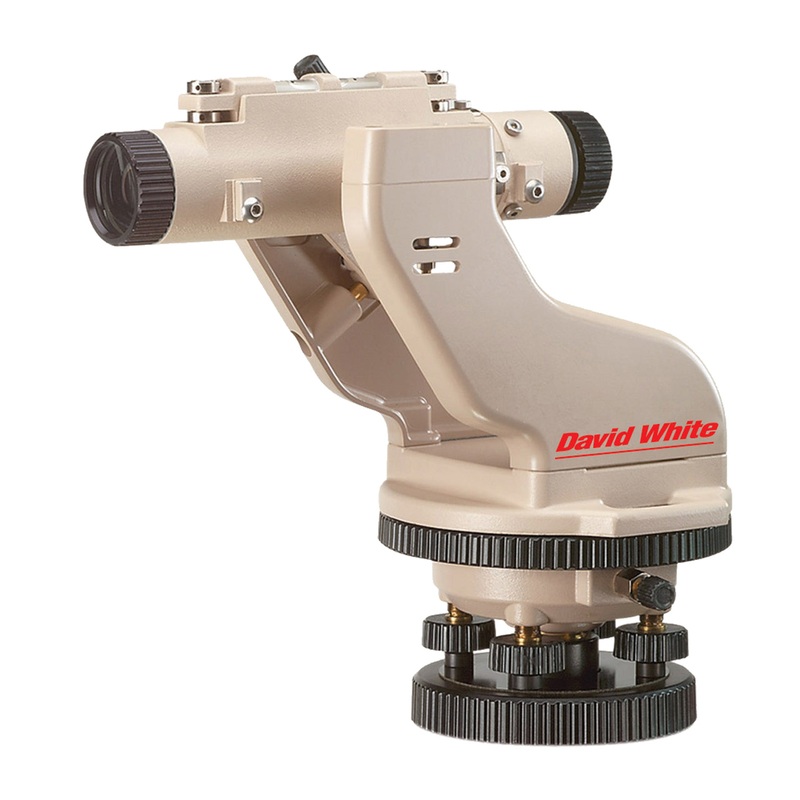

The David White LT8-300LTU Universal Line Transit Unit is designed for precise alignment and leveling in pipe laying and construction layout applications. Featuring a 360 rotating telescope, this instrument allows operators to sight directly below the instrumentmaking it especially effective for pipeline alignment and vertical reference work. With a range of up to 400 feet and 3/16-inch accuracy at 150 feet, it delivers reliable performance in the field.
The LT8-300LTU can be used alongside pipe aligning lasers or as a traditional level-transit. A glass reticle with 1:100 stadia supports accurate distance measurement, while the horizontal circle lock helps prevent accidental movement during critical readings.
In the Box
- Optical Level
- Rain Hood
- Objective Lens
- Case
- Manual
Brochures and Manuals
- David White LT8-300LTU Universal Optical Line Transit Technical Datasheet
