Specifications
- Range: Up to 400 ft (120 m)
- Leveling Accuracy: 3/16 in at 150 ft (4.75 mm at 45 m)
- Telescope Magnification: 26X
- Telescope Rotation: 360 continuous rotation
- Telescope Length: 8-1/2 in (216 mm)
- Minimum Focus: 6 ft (1.8 m)
- Aperture: 1.257 in (32 mm)
- Field of View: 1 9 @ 100 ft (54 cm @ 30 m)
- Number of Lenses: 8
- Stadia Ratio: 1:100 (glass reticle)
- Horizontal Circle: 4-5/8 in (117 mm), 1 graduations, 10 numbering
- Circle Lock: Prevents accidental horizontal movement
- Plate Vial: For rough leveling and general plummeting
- Tripod Mount: 5/8-11 (heavy-duty tripod required)
Product Description

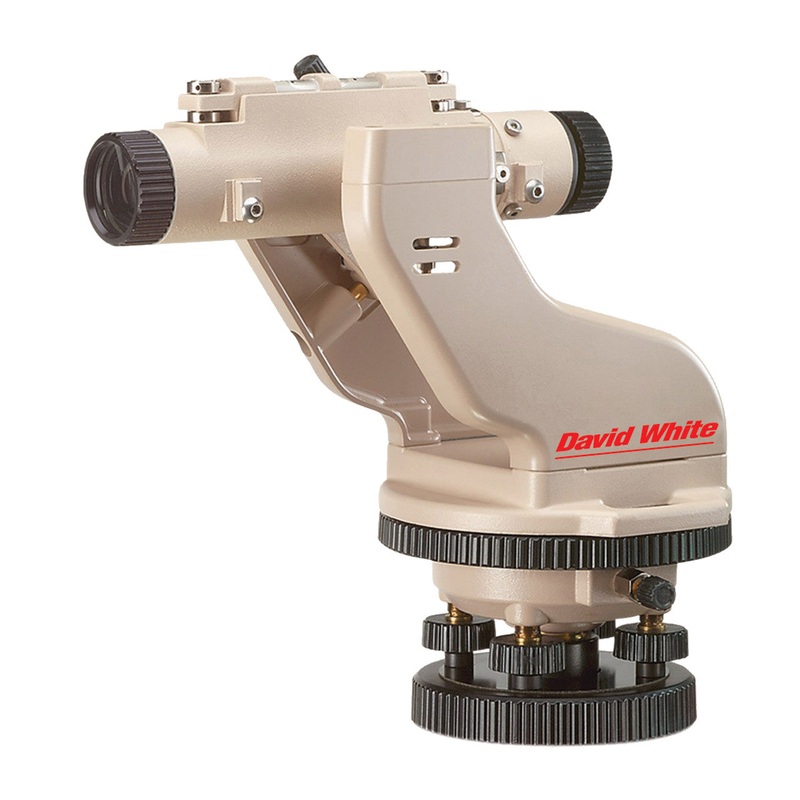

The David White LT8-300LTULP Universal Line Transit Unit is built for precise pipe laying, alignment, and general construction layout where fast setup and dependable accuracy are critical. Its 360 rotating telescope allows operators to sight directly below the instrument, making it ideal for pipeline alignment and vertical reference work. With a working range of up to 400 feet and 3/16-inch accuracy at 150 feet, it delivers consistent, jobsite-ready performance.
An integrated laser plummet enables quick and accurate centering over control points, reducing setup time compared to traditional methods. The glass reticle with 1:100 stadia supports reliable distance measurement, while the horizontal circle lock helps prevent accidental movement during critical readings.
In the Box
- Optical Level
- Rain Hood
- Objective Lens
- Case
- Manual
