Description
Specifications
- Range: Up to 400 ft (120 m)
- Leveling Accuracy: 3/16 in at 150 ft (4.75 mm at 45 m)
- Telescope Magnification: 26X
- Telescope Length: 8-1/2 in (216 mm)
- Minimum Focus: 6 ft (1.8 m)
- Aperture: 1.257 in (32 mm)
- Field of View: 1 9 @ 100 ft (54 cm @ 30 m)
- Number of Lenses: 8
- Stadia Ratio: 1:100 (glass reticle)
- Horizontal Circle: 4-5/8 in (117 mm), 1 graduations, 10 numbering, double vernier to 5 min
- Vertical Arc: 1 graduations, 10 numbering (45045), double vernier to 5 min
- Level Vial Accuracy: 110120 sec per 2 mm
- Plate Vial Accuracy: 360 sec per 2.5 mm
- Instrument Weight: 9.5 lb (4.31 kg)
- Tripod Mount: 5/8-11 (heavy-duty tripod required)
Product Description

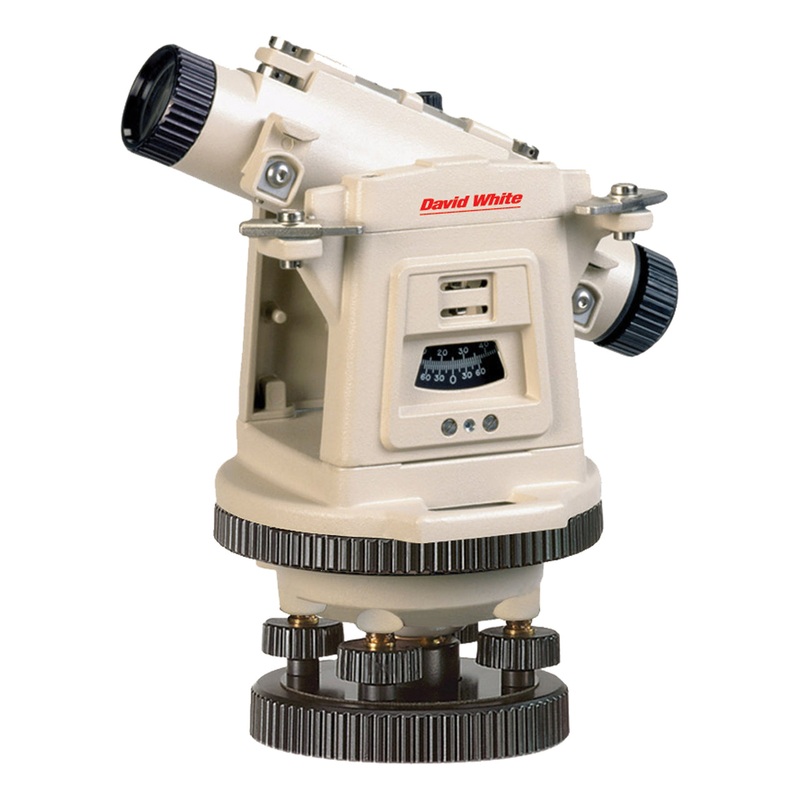

The David White LT8-300P Universal Level-Transit is a rugged, dependable optical instrument designed for accurate horizontal and vertical sighting in construction applications. With a working range of up to 400 feet and 3/16-inch accuracy at 150 feet, it delivers consistent performance for leveling, alignment, and layout tasks on active jobsites.
The built-in optical plummet simplifies setup by allowing accurate instrument positioning, while the horizontal circle and vertical arceach with lock and tangentenable fine adjustment and controlled measurements.
In the Box
- Optical Level
- Rain Hood
- Objective Lens
- Case
- Manual
Brochures and Manuals
- David White LT8-300P Universal Level Transit with Optical Plummet Technical Datasheet
