Description
Specifications
- GNSS: GPS/QZSS (L1C/A, L2C), GLONASS (L1OF, L2OF), Galileo (E1-B/C, E5b), BeiDou (B1I, B2I)
- Channels: 184 channels
- Tilt Compensation: Up to 60 tilt, accuracy: 2mm + 0.3mm/
- Accuracy (RTK): Horizontal: 7mm + 1ppm; Vertical: 14mm + 1ppm
- Update Rate: 10 Hz
- RTK Fix Time: Typically <5 seconds
- Connectivity: LTE, Wi-Fi, Bluetooth, RS-232, USB-C
- Radios: LoRa (915/868 MHz), UHF receiver (410470 MHz, TRIMTALK 450S protocol)
- Correction Format: NTRIP, RTCM3
- Power Source: 7.2V/5.2Ah Li-Ion Battery
- Battery Life: Up to 22 hours
- Durability: IP67-rated
- Operating Temperature: 4F to +149F (20C to +65C)
Product Description

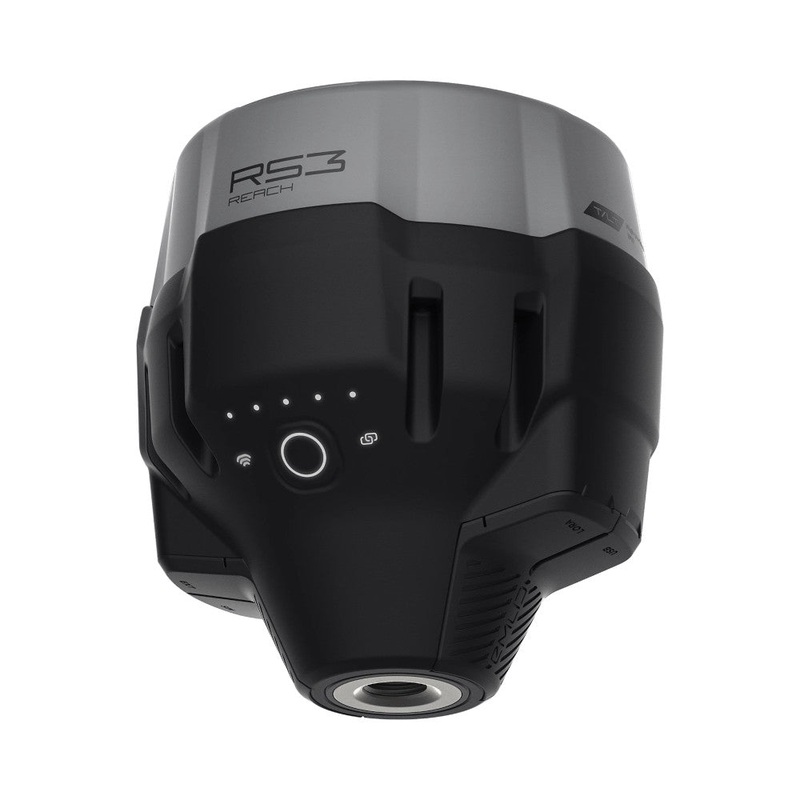

The Emlid Reach RS3 is a high-performance multi-band RTK GNSS receiver equipped with IMU-based tilt compensation. Designed for both base and rover configurations, the RS3 delivers centimeter accuracy even when the pole is tiltedno bubble leveling required. With built-in LTE, Wi-Fi, Bluetooth, LoRa, and UHF connectivity, it supports diverse correction input and output methods, allowing it to operate seamlessly as a base or rover. Housed in a compact and durable IP67-rated enclosure, the Reach RS3 is ready for challenging job site environments, delivering up to 22 hours of field operation on a single charge.
In the Box
- Reach RS3 Receiver
- LoRa Antenna
- USB Cable
- Carrying Case with Strap
Brochures and Manuals
- Emlid Reach RS3 Technical Datasheet
