Description
Specifications
- GNSS: GPS/QZSS (L1C/A, L2C), GLONASS (L1OF, L2OF), Galileo (E1-B/C, E5b), BeiDou (B1I, B2I)
- Channels: 184 channels
- Accuracy (RTK): Horizontal: 7mm + 1ppm; Vertical: 14mm + 1ppm
- Update Rate: 5 Hz
- RTK Fix Time: Typically <5 seconds
- Connectivity: Bluetooth, USB-C
- Correction Format: NTRIP, RTCM3
- Power Source: 3.6V/5.2Ah Li-Ion Battery
- Battery Life: Up to 16 hours
- Durability: IP68
- Operating Temperature: 4F to +149F (20C to +65C)
Product Description

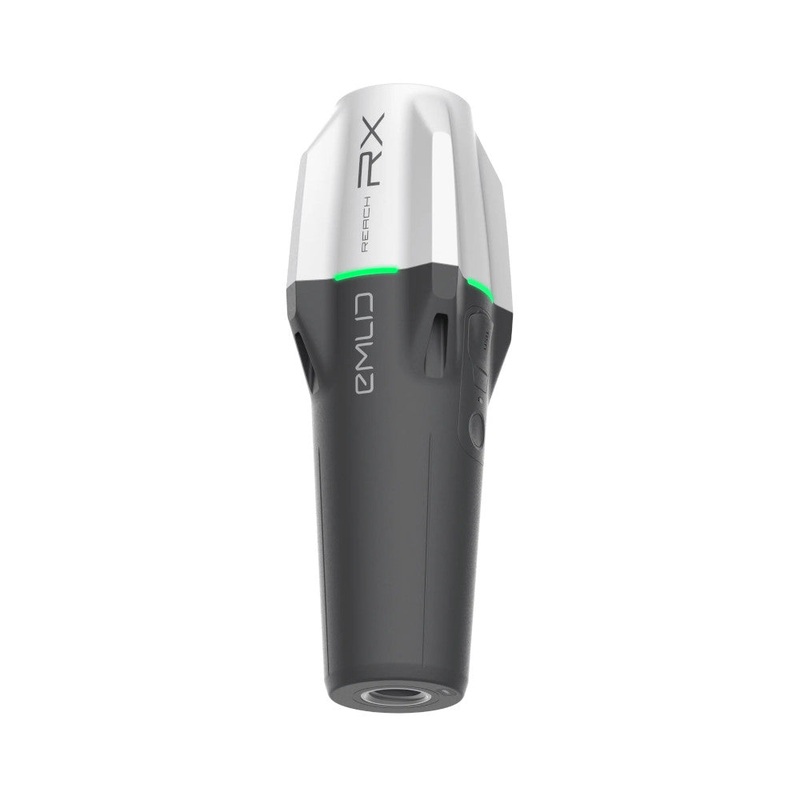

The Emlid Reach RX is a compact, multi-band RTK GNSS rover designed for simplicity and speed. The Reach RX requires no additional configuration just connect via Bluetooth, open your app, and start surveying. With centimeter-accurate results, full GNSS constellation support, and a 5Hz update rate, the Reach RX delivers dependable performance using NTRIP corrections over your mobile devices internet. Weighing just 250g and built with an IP68-rated housing, its waterproof, dustproof, and ready for all-day fieldwork with up to 16 hours of runtime.
In the Box
- Reach RX RTK Rover
- USB Type-C Cable
Brochures and Manuals
- Emlid Reach RX Technical Datasheet
