Description
Specifications
Emlid Reach RS2+
- Signals: GPS/QZSS L1C/A, L2C; GLONASS L1OF, L2OF; BeiDou B1I, B2I; Galileo E1-B/C, E5b
- Channels: 184
- Update Rate: Up to 10 Hz
- RTK Precision: 7 mm + 1 ppm horizontal, 14 mm + 1 ppm vertical
- Radio: LoRa modem (868/915 MHz, up to 8 km)
- Connectivity: LTE modem (global), Wi-Fi 802.11 b/g/n, Bluetooth 4.0
- Ingress Protection: IP67
- Battery: 6400 mAh LiFePO4, up to 22 hours
- Operating Temperature: -4F to +149F (-20C to +65C)
- Weight: 2.09 lbs.
Emlid 1.8m Survey Pole w/Smartphone Mount
- Material: Aluminum
- Extended Length: 1.8m
- Collapsed Length: 0.74m
- Load Capacity: 22.09 lbs.
- Thread: 5/8-11 UNC
- Operating Temperature: -4F to +158F (-20C to +70C)
- Weight: 1.98 lbs.
Product Description
The Emlid RS2+ Rover Surveying Package is an all-in-one field kit. With the Reach RS2+ as the rover, you get centimeter-level RTK performance, fast convergence, and 22 hours of continuous operation. Supporting all major satellite constellations, the RS2+ ensures consistent results for construction layout, topographic mapping, and land surveying projects. Seamlessly controlled through your smartphone and the Emlid Flow app, its a practical solution for professionals who need dependable GNSS performance in the field.
This package includes field accessories: a 1.8 m survey pole with smartphone mount, SitePro aluminum thumb-release bipod, Tiger Supplies aluminum prism pole tripod, and a wide-base topo shoe for added stability. Alongside the hardware, you get one-year licenses of Emlid Pro Survey Plan and Control Point Corrections TrueRTK (powered by Point One Navigation) for advanced project management and>

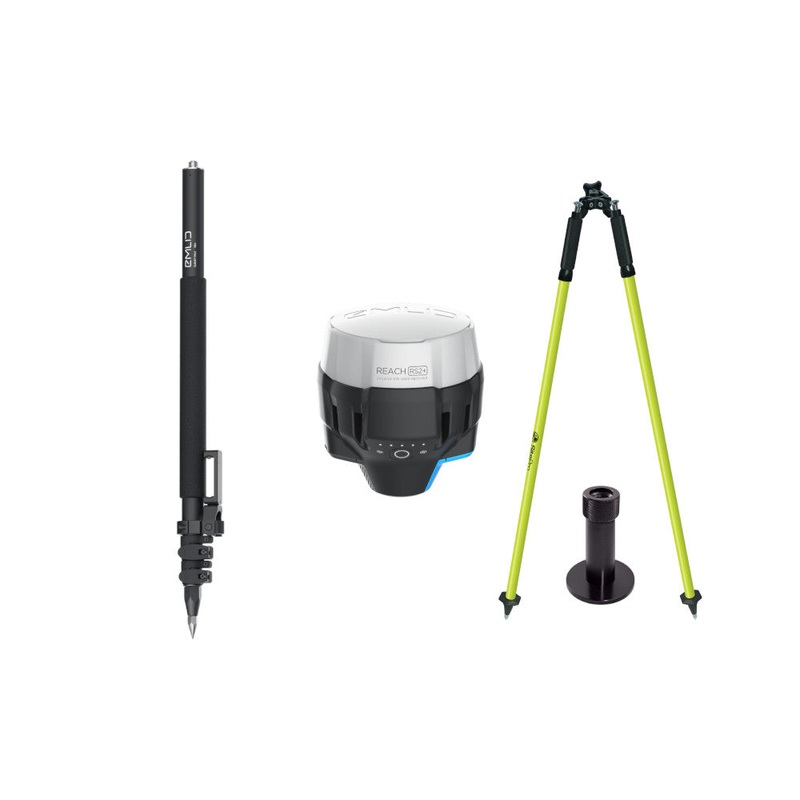

In the Box
- (1)x Reach RS2+ receiver with (1)x LoRA Antenna, (1)x USB Cable and (1)x Carrying Case with strap
- (1)x 1.8m Survey Pole w/Smartphone Mount
- Pro Survey Plan Software (1 Year)
- Control Point Corrections TrueRTK (1 Year)
- (1)x Aluminum Thumb Release Anti-Crush Bipod (Fluorescent Yellow)
- (1)x Topo Shoe with Wide Base
Brochures and Manuals
- Emlid Reach RS2+ Technical Datasheet
