Description
Specifications
Emlid Reach RS3 (Base)
- Channels: 184
- Signals: GPS/QZSS L1C/A, L2C; GLONASS L1OF, L2OF; BeiDou B1I, B2I; Galileo E1-B/C, E5b
- Update Rate: Up to 10 Hz
- RTK Precision: 7 mm + 1 ppm horizontal, 14 mm + 1 ppm vertical
- Tilt Compensation: RTK + 2 mm + 0.3 mm/
- Radios: LoRa (868/915 MHz, up to 8 km); UHF (410470 MHz, TRIMTALK 450S, receive-only)
- Connectivity: LTE modem (global), Wi-Fi 802.11 b/g/n, Bluetooth 4.0
- Ingress Protection: IP67
- Battery: 5200 mAh Li-Ion, up to 18 hours with tilt compensation
- Operating Temperature: -4F to +149F (-20C to +65C)
- Weight: 2.09 lbs.
Emlid Reach RX (Rover)
- Signals: GPS/QZSS L1C/A, L2C; GLONASS L1OF, L2OF; BeiDou B1I, B2I; Galileo E1-B/C, E5b
- Channels: 184
- Update Rate: Up to 5 Hz
- RTK Precision: 7 mm + 1 ppm horizontal, 14 mm + 1 ppm vertical
- Convergence Time: ~5 seconds
- Connectivity: Bluetooth 4.2
- Ingress Protection: IP68
- Battery: 5200 mAh Li-Ion, up to 16 hrs
- Operating Temperature: -4F to +149F (-20C to +65C)
- Weight: 8.8 oz (250 g), pocket-sized design
Emlid 1.8m Survey Pole w/Smartphone Mount
- Material: Aluminum
- Extended Length: 1.8m
- Collapsed Length: 0.74m
- Load Capacity: 22.09 lbs.
- Thread: 5/8-11 UNC
- Operating Temperature: -4F to +158F (-20C to +70C)
- Weight: 1.98 lbs.
Product Description
The Emlid RS3 Base & RX Rover Surveying Package is a streamlined solution for surveyors who need fast, reliable positioning in the field. With the RS3 operating as a robust base station and the RX as a lightweight rover, this kit delivers survey-grade accuracy, quick setup, and dependable RTK performance. The RS3 supports tilt compensation, LoRa and UHF radios, and global LTE connectivity, ensuring corrections are broadcast consistently. The RX, designed for portability, achieves centimeter-level accuracy in seconds, making it perfect for construction layout, topographic surveys, and GIS applications.
This package includes all the hardware needed for a stable setup, including a carbon fiber GPS pole, thumb-release bipod, aluminum tripod, topo shoe, and a smartphone mount. With a one-year license of Emlid Pro Survey Plan, youll also have access to advanced survey management and>

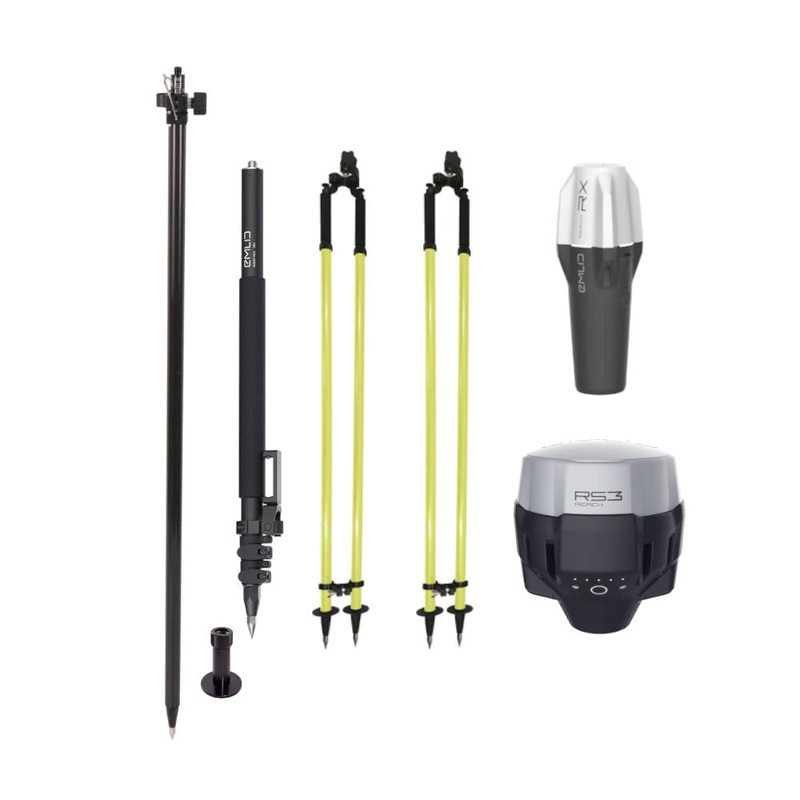

In the Box
- (1)x Reach RS3 receiver with (1)x LoRA Antenna, (1)x USB Cable and (1)x Carrying Case with strap
- (1)x Reach RX receiver with (1)x USB Cable
- (1)x 1.8m Survey Pole w/Smartphone Mount
- Pro Survey Plan Software (1 Year)
- (2)x Aluminum Thumb Release Anti-Crush Bipod (Fluorescent Yellow)
- (1)x Topo Shoe with Wide Base
- (1)x 8.5 ft Carbon Fiber GPS Pole
Brochures and Manuals
- Emlid Reach RS3 Technical Datasheet
- Emlid Reach RX Technical Datasheet
