Description
Specifications
Emlid Reach RS3 (Base)
- Channels: 184
- Signals: GPS/QZSS L1C/A, L2C; GLONASS L1OF, L2OF; BeiDou B1I, B2I; Galileo E1-B/C, E5b
- Update Rate: Up to 10 Hz
- RTK Precision: 7 mm + 1 ppm horizontal, 14 mm + 1 ppm vertical
- Tilt Compensation: RTK + 2 mm + 0.3 mm/
- Radios: LoRa (868/915 MHz, up to 8 km); UHF (410470 MHz, TRIMTALK 450S, receive-only)
- Connectivity: LTE modem (global), Wi-Fi 802.11 b/g/n, Bluetooth 4.0
- Ingress Protection: IP67
- Battery: 5200 mAh Li-Ion, up to 18 hours with tilt compensation
- Operating Temperature: -4F to +149F (-20C to +65C)
- Weight: 2.09 lbs.
Emlid Reach RS2+ (Rover)
- Signals: GPS/QZSS L1C/A, L2C; GLONASS L1OF, L2OF; BeiDou B1I, B2I; Galileo E1-B/C, E5b
- Channels: 184
- Update Rate: Up to 10 Hz
- RTK Precision: 7 mm + 1 ppm horizontal, 14 mm + 1 ppm vertical
- Radio: LoRa modem (868/915 MHz, up to 8 km)
- Connectivity: LTE modem (global), Wi-Fi 802.11 b/g/n, Bluetooth 4.0
- Ingress Protection: IP67
- Battery: 6400 mAh LiFePO4, up to 22 hours
- Operating Temperature: -4F to +149F (-20C to +65C)
- Weight: 2.09 lbs.
Emlid 1.8m Survey Pole w/Smartphone Mount
- Material: Aluminum
- Extended Length: 1.8m
- Collapsed Length: 0.74m
- Load Capacity: 22.09 lbs.
- Thread: 5/8-11 UNC
- Operating Temperature: -4F to +158F (-20C to +70C)
- Weight: 1.98 lbs.
Product Description

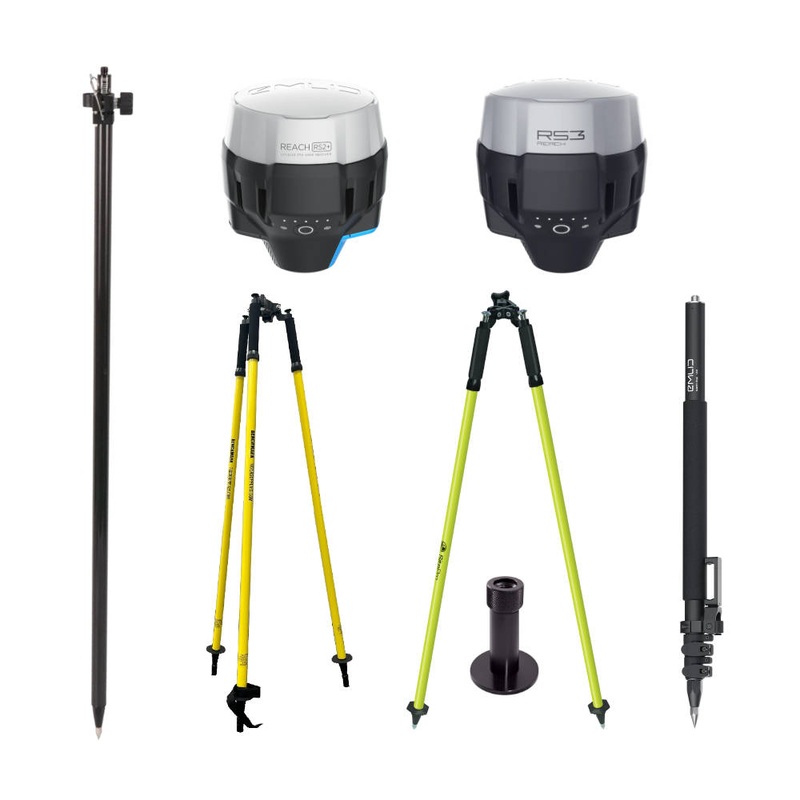

The Emlid RS3 Base & RS2+ Rover Surveying Package is designed for surveyors who need reliable RTK positioning in demanding construction and land surveying environments. With the Reach RS3 serving as a robust base station and the Reach RS2+ operating as a rover, this package delivers fast initialization, high-precision tilt compensation, and consistent connectivity across all major satellite constellations. Ideal for topographic surveys, stakeouts, and construction layout, the system offers survey-grade accuracy without the need for a dedicated controller simply use your smartphone with the included Emlid software.
This package includes everything you need for efficient fieldwork: the RS3 GNSS receiver with 22 hours of operation and UHF/LoRa radios, the RS2+ rover for up to 17 hours of continuous use, a carbon fiber GPS pole, aluminum prism pole tripod, thumb-release bipod, topo shoe, and a smartphone mount. With a one-year license of Emlid Pro Survey Plan, you get advanced cloud-based data management and processing tools to streamline your workflow. Built to IP67 standards, the receivers withstand harsh field conditions, ensuring maximum uptime and dependable results.
In the Box
- (1)x Reach RS2+ receiver with (1)x LoRA Antenna, (1)x USB Cable and (1)x Carrying Case with strap
- (1)x Reach RS3 receiver with (1)x LoRA Antenna, (1)x USB Cable and (1)x Carrying Case with strap
- (1)x 1.8m Survey Pole w/Smartphone Mount
- Pro Survey Plan Software (1 Year)
- (1)x Aluminum Thumb Release Anti-Crush Bipod (Fluorescent Yellow)
- (1)x Topo Shoe with Wide Base
- (1)x 8.5 ft Carbon Fiber GPS Pole
- (1)x Aluminum Prism Pole Tripod (Yellow)
Brochures and Manuals
- Emlid Reach RS3 Technical Datasheet
- Emlid Reach RS2+ Technical Datasheet
