Description

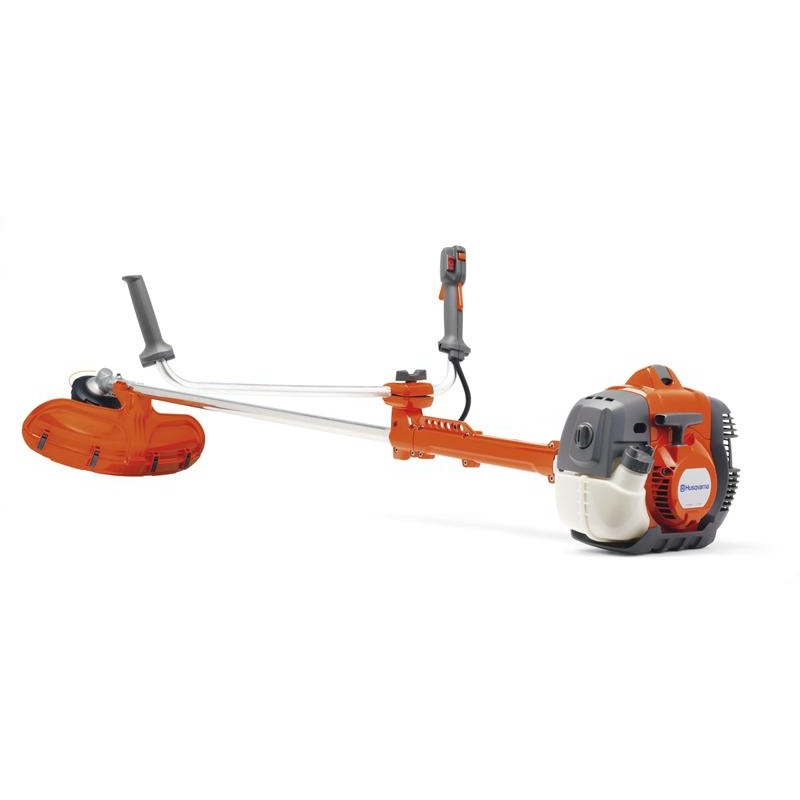

HUSQVARNA 336FR
336FR
Husqvarna 336FR comes complete with trimmer head, grass blade and saw blade. This flexibility makes it an ideal solution for people who require the benefits both products offer in one, effective package. The X-Torq engine provide raw power and excellent fuel economy. Delivered with Balance 35 harness.
X-Torq engine
The X-Torq engine design reduces harmful exhaust emissions by up to 60% and increases fuel efficiency by up to 20%.
Traveling connection
Travelling connection requires less energy when working and can be connected in a grass- or forest position.
Air Purge
Removes air from carburetor and fuel system for easy starting.
Auto return stop switch
When the machine is turned off, the stop switch automatically returns to the start position for easier starting.
Versatile guard
The cutting attachment guard can be used with either a grass blade or a trimmer head.
Adjustable handle bar
Adjustable and ergonomically designed handlebar for best comfort.
Soft grip handles
Soft grip handles for comfortable use
Ergonomic handle
Comfortable handle design.
| Engine specification | |
|---|---|
| Cylinder displacement | 34.6 cc |
| Cylinder bore | 1.5 inch |
| Cylinder stroke | 1.2 inch |
| Power output | 1.9 hp |
| Maximum power speed | 8400 rpm |
| Fuel tank volume | 20.3 fl oz |
| Maximum recommended engine speed | 11500 rpm |
| Carburetor | Zama |
| Fuel consumption | 435 g/kWh |
| Fuel consumption | 1.3 lbs/h |
| Idling speed | 2900 rpm |
| Spark plug | Champion RCJ6Y |
| Electrode gap | 0.02 “ |
| Ignition system | Walbro |
| Clutch engagement speed | 3800 rpm (120 rpm) |
| Maximum rpm output shaft | 8220 rpm |
| Output shaft thread | M12x1.75V |
| RPM limiter | Yes |
| Air filter type | Foam |
| Equipment |
|---|
