Description

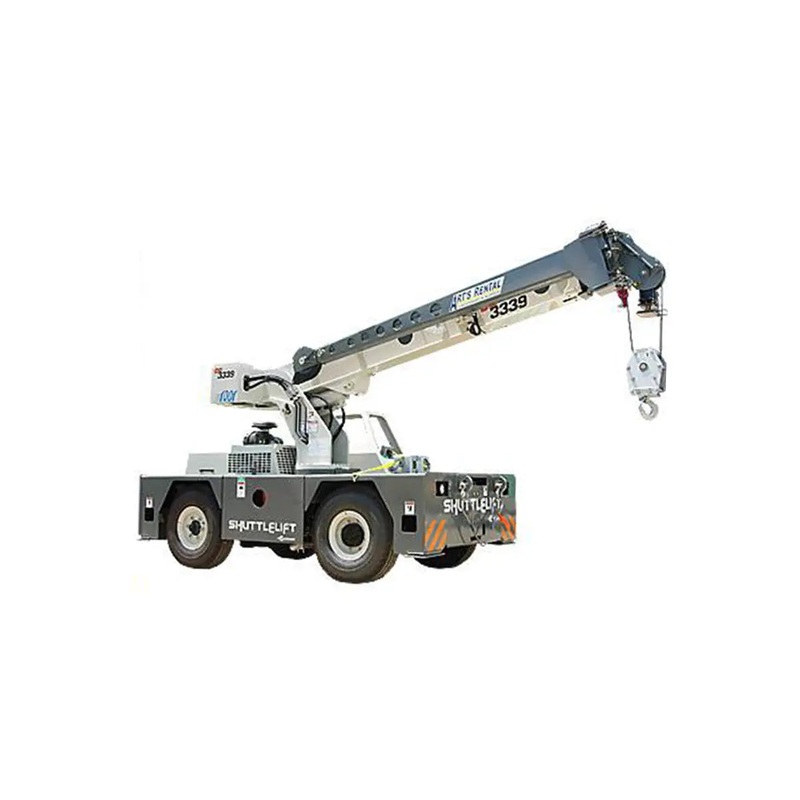

MODEL- SHUTTLELIFT..CD3339 DIESEL w/12-18′ EXTENDABLE JIB
- DIMENSIONS- L= 17′ 8″ / W= 6′ 5″ / H= 7′ 3″ (Transport)
- WEIGHT- 17,683 lbs.
- BOOM REACH- V= 32′ 10″..H= 30′ 4″
- REACH w/JIB- V= 50′ 10″..H= 48′
- MAX LIFT CAPACITY- 18,000 lbs. (SEE LOAD CHART)
- MAX DECK CAPACITY- 14,000 lbs.
- ROTATION- 360 Continuous
- STEERING- 2 or 4-Wheel w/Crab Steer
- TURN RADIUS- 2-Wheel Steer= 14′ 4″..4-Wheel Steer= 14′ 0″
- MAX SPEED- 22 MPH
- GRADEABILITY- 57% @ No Load
- ENGINE- CUMMINS QSB3.3 Turbo Diesel 85-HP
- FUEL CAPACITY- 17 Gallons
MODEL- SHUTTLELIFT..CD3330FL..GAS/PROPANE
- DIMENSIONS- L= 15′ 7″ / W= 6′ 6″ / H= 7′ 10″ (Transport)
- WEIGHT- 15,180 lbs.
- BOOM REACH- V= 39′ 8″..H= 36′
- REACH w/JIB- N/A
- MAX LIFT CAPACITY- 17,000 lbs. (SEE LOAD CHART)
- MAX DECK CAPACITY- 14,000 lbs.
- ROTATION- 360 Continuous
- STEERING- 2 or 4-Wheel
- TURN RADIUS- 2-Wheel Steer= 14′ 8″..4-Wheel Steer= 10′ 2″ Outside
- MAX SPEED- 22 MPH
- GRADEABILITY- 57% @ No Load..31% @ 12,000 lb. Load
- ENGINE- GM 3.0L Dual Fuel..70 HP
- FUEL CAPACITY- 18.5 Gallons
