Description
Specifications
- Telescope:
- Image: Erect
- Magnification: 30x, Stadia ratio 1:100
- Effective Aperture: 45 mm
- Resolving Power: 4
- Field of View: 120
- Minimum Sight Distance: 1.2 m (3.94 ft)
- Angle Measurement:
- Measuring Method: Absolute Encoder
- Minimum Display: 1/5/10 selectable
- Detection Method: Level Radial, Vertical Radial
- Accuracy: 2
- Range Finding:
- Reflectorless/Laser Pointer: Class 3R/IIIa
- EDM: Coaxial
- Automatic Correction: Meteorological, Atmospheric Refraction, Earth Curvature
- Instrument:
- Display: LCD, 6 lines 12 characters
- Internal Memory: 20,000 points
- Data Ports: I/O, USB, Bluetooth, Micro SD
- Operating Time: 9 hours (lithium battery)
- Battery: Rechargeable Lithium-ion
- Weatherproof Rating: IP55 (IEC60529)
- Operating Temperature: 20C to +50C
- Level Vial Sensitivity:
- Plate Level: 30 / 2 mm
- Circular Level: 8 / 12 mm
- Compensation:
- Method: Electronic
- Range: 3
- Laser Plummet:
- Accuracy: 0.8 mm / 1.5 m
- Laser Class: 2/1 EC60825-1
- Weight: 10 lbs
Product Description

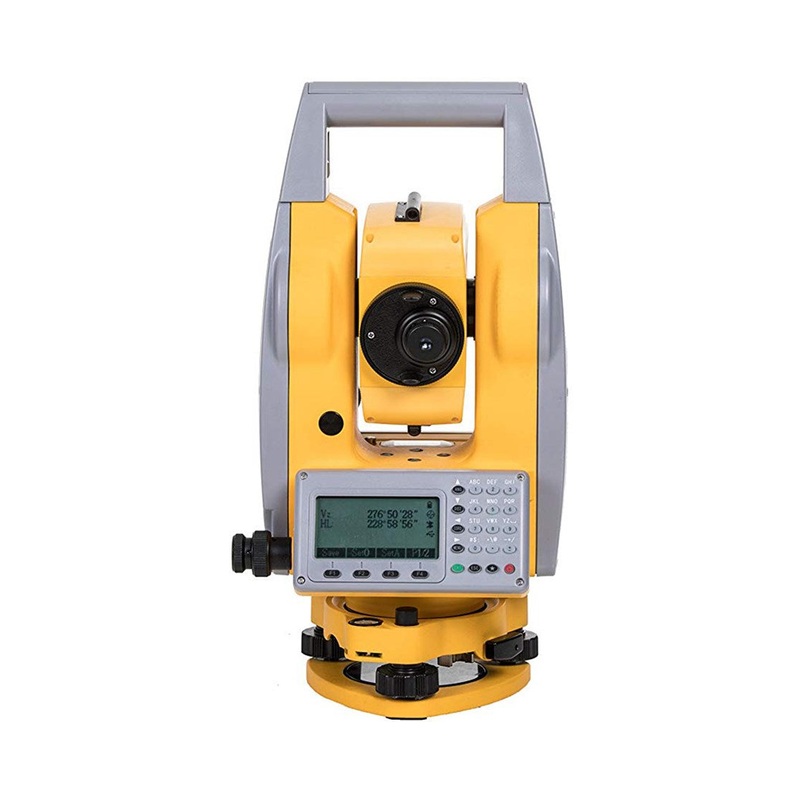

The NWI NTS03 Total Station combines durability, measurement precision, and efficient field operation in a compact 2-second instrument designed for construction and surveying professionals. Its 30x magnification and 120 field of view offer excellent clarity for long-range sighting, while the reflectorless EDM and Class 3R/IIIa laser pointer allow flexible measurement workflows in a wide range of jobsite scenarios. The absolute encoder ensures repeatable, stable angle readings with 2 accuracy and a selectable 1/5/10 minimum display, giving users the reliability needed for layout and stakeout work.
For data management, the NTS03 comes equipped with dual LCD displays, 20,000-point internal storage, and multiple communication ports including USB, I/O, Bluetooth, and MicroSD. Its IP55-rated weatherproof housing, wide operating temperature range, and long-lasting lithium battery (9 working hours) make it a dependable instrument in heat, cold, dust, or light rain.
In The Box
- (1) NTS03 Total Station
- (1) Charger
- (1) Extra Battery
- (1) Total Station Tool Kit
- (1) Brush
- (1) Rain Cover For NTS03
