Description
MODEL- GENIE..GR20 PERSONNEL LIFT
- DIMENSIONS- L= 53″/ W= 31.5″/ H= 78″
- WEIGHT- 2451 lbs.
- WORKING HEIGHT- 25′ 9″
- PLATFORM DIMENSIONS- L= 35″/ W= 29.5″
- PLATFORM HEIGHT- 19′ 9″ Max.
- PLATFORM ENTRY HEIGHT- 15.5″
- PLATFORM CAPACITY- 350 lbs.
- PLATFORM EXTENSION- L= 20″..w/ Gate
- TIRES- Solid..Non-Marking
- TRAVEL SPEED- Stowed= 2.5 MPH/ Raised= .5 MPH
- DRIVE- Variable Speed..2 Front Wheels
- WIND RATING- N/A
- TURN RADIUS- Zero Inside/ 4′ 7″ Outside
- GROUND CLEARANCE- 2.5″
- GRADEABILITY- 30%
- POWER- (4) 225 Ah 6 Volt DC Batteries
- CHARGER- 25 Amp (5 Hr. Chg. Time)

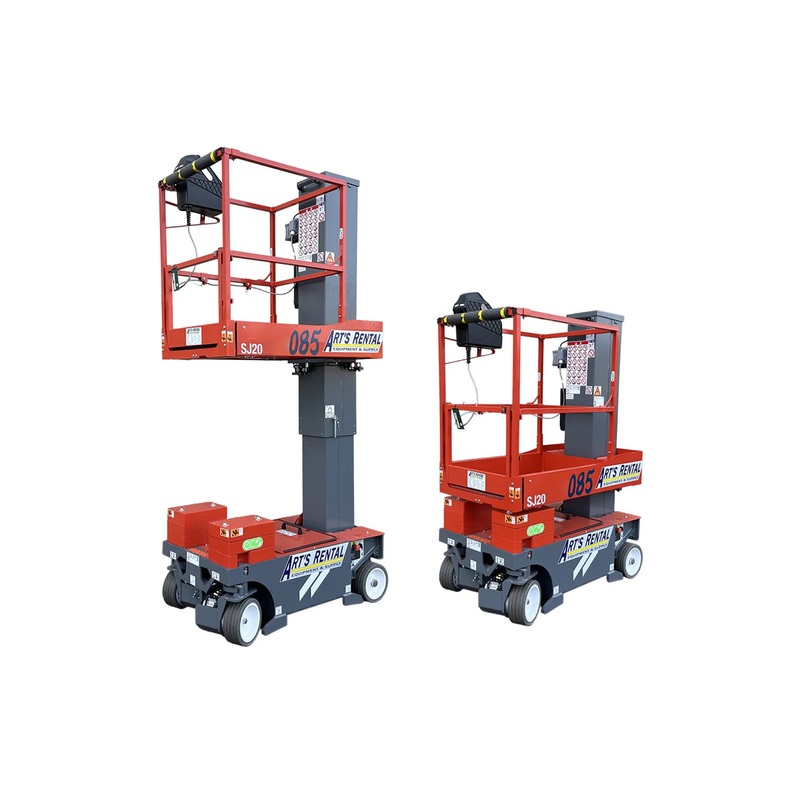

MODEL- SKYJACK SJ20 PERSONNEL LIFT
- DIMENSIONS- L= 54″/ W= 31.5″/ H= 79.5″ (STOWED)
- WEIGHT- 2440 lbs.
- WORKING HEIGHT- 25′ 6″
- PLATFORM DIMENSIONS- L= 36″/ W= 27″ (INSIDE DIM.)
- PLATFORM HEIGHT- 19′ 6″ Max.
- PLATFORM ENTRY HEIGHT- 15.5″
- PLATFORM CAPACITY- 350 lbs. (148 PSI AT MAX LOAD)
- PLATFORM EXTENSION- L= 16″
- TIRES- Solid / Non-Marking (10″ X 4″)
- TRAVEL SPEED- Stowed= 2.5 MPH / Raised= .3 MPH
- DRIVE- Variable Speed..2 Front Wheels
- WIND RATING- N/A
- TURN RADIUS- Zero Inside / 55″ Outside
- GROUND CLEARANCE- 1″
- GRADEABILITY- 25%
- POWER- (4) 225 Ah 6 Volt DC Batteries
- CHARGER- 25 Amp (5 Hr. Chg. Time)
MODEL- JLG..20MVL PERSONNEL LIFT
- DIMENSIONS- L= 53.5″/ W= 29.5″/ H= 78″
- WEIGHT- 2395 lbs.
- WORKING HEIGHT- 25′ 6″
- PLATFORM DIMENSIONS- L= 28″/ W= 26″
- PLATFORM HEIGHT- 19′ 6″ Max.
- PLATFORM ENTRY HEIGHT- 19″
- PLATFORM CAPACITY- 350 lbs.
- PLATFORM EXTENSION- L= 23″
- TIRES- Non-Marking
- TRAVEL SPEED- Platform Down= 3.5 MPH…Up= .5 MPH
- DRIVE- Variable Speed..2-Wheel
- TURN RADIUS- Zero
- GROUND CLEARANCE- 2″
- GRADEABILITY- 20%
- POWER SOURCE- (2) 100 A.H. 12 Volt DC Batteries
- CHARGER- 25 Amp (5 Hr. Chg. Time)
