Description
Specifications
- Laser Classification: CDRH Class IIIa, IEC Class 2
- Rotation Speed: 500 rpm, 360 coverage
- Laser Beam Type: Visible 650 nm
- Range with Receiver: 2000 ft diameter (610 m) / 1000 ft radius (305 m)
- Horizontal Accuracy: 10 arc sec (1/16 in per 100 ft / 1.5 mm per 30 m)
- Cone Slope Capability: 4%, 1/4% increments (Hi-Res: 1.7%, 1/10% increments)
- Leveling Technology: Servo motor self-leveling, 5 range
- Height Alert: Active, can be disabled
- Slope Matching Range: Single axis, 8%
- Machine Control Compatible: Yes
- Power Source: 4 C-cell alkaline batteries (75 hrs continuous)
- Optional Battery: NiMH rechargeable pack (48 hrs continuous)
- Protection Rating: IP56 (dust and water sealed)
- Operating Temperature: -4F to +140F (-20C to +60C)
- Warranty: 8 years
Product Description

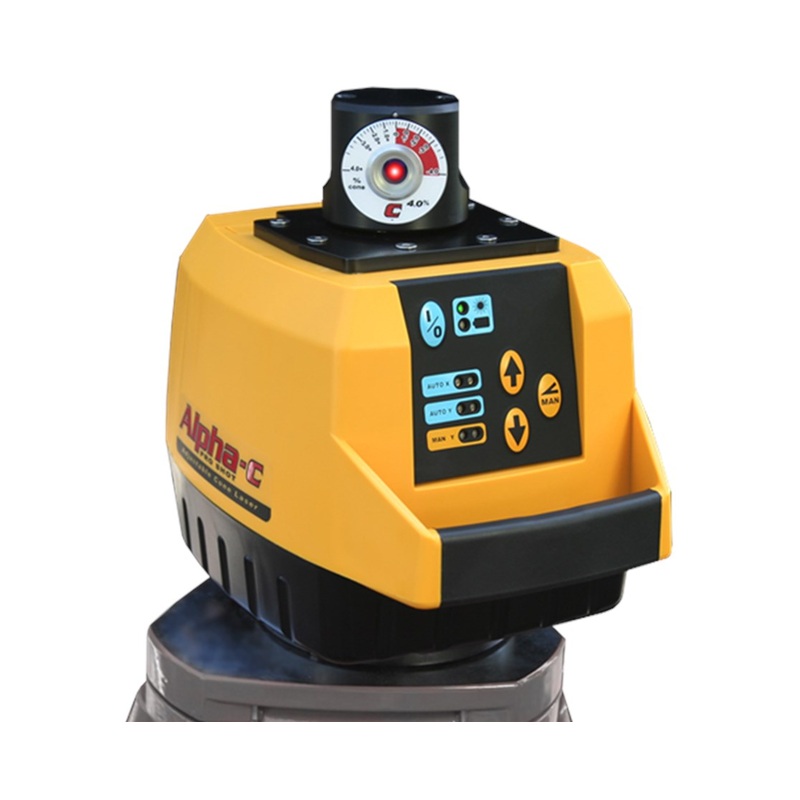

The Pro Shot Alpha-C is a precision self-leveling cone laser designed for specialized grading applications where standard slope lasers fall short. Ideal for baseball fields, running tracks, and containment areas, the Alpha-C projects an adjustable conical reference plane with up to 4% slope in % increments. Its servo motor maintains precise self-leveling within 5, ensuring consistent accuracy even on challenging site conditions. The laser can also function as a standard level when needed, delivering 10 arc-second accuracy across a 2,000-foot diameter range.
Each Alpha-C is hand-built, tested, and calibrated for professional-grade performance. Its IP56-rated construction protects against dust and moisture, while high-speed 500 rpm rotation ensures smooth operation. It features long battery life, optional rechargeable power, and full machine control compatibilityall backed by Pro Shots 8-year warranty.
Brochures and Manuals
- Pro Shot Alpha-C Cone Laser User Manual
