Description
Specifications
- Range with Receiver: 2000 ft diameter (610 m) / 1000 ft radius (305 m)
- Accuracy: 14 arc sec (0.08 in per 100 ft / 2.0 mm per 30 m)
- Slope Capability: 025% single-axis, .01% increments
- Leveling Technology: Servo motor, 4 range
- Rotation Speed: 600 rpm, 360 coverage
- Machine Control Compatible: Yes
- Power Source: 4 C-cell alkaline batteries (200 hrs continuous)
- Optional Battery: NiMH rechargeable pack (95 hrs continuous)
- Laser Classification: CDRH and IEC Class 2
- Protection Rating: IP56 (dust and water sealed)
- Operating Temperature: -4F to +140F (-20C to +60C)
- Warranty: 8 years
Product Description

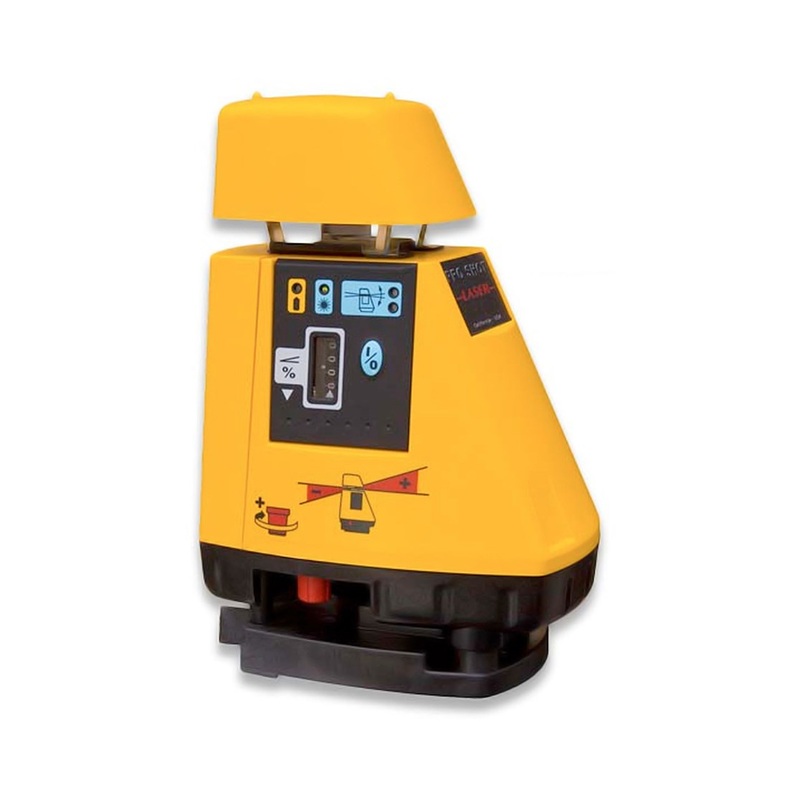

The Pro Shot AS2 delivers professional-grade slope accuracy and value in one precision laser level. Designed for grading, excavation, and sanitation projects, it allows you to dial in slopes up to 25% with fine-tuned .01% resolution. This servo self-leveling laser maintains full accuracy even at steep grades. Its 2,000-foot (610 m) working diameter and 14 arc-second accuracy make it ideal for civil, site, and utility work.
The AS2 features an IP56-rated housing, 360 rotation at 600 rpm, and full machine control compatibility. Powered by four C-cell batteries for up to 200 hours of continuous use, it also supports an optional NiMH rechargeable pack. With reliable performance across -4F to 140F, AS2 is backed by 8 years warranty.
Brochures and Manuals
- AS2 Grade Laser User Manual
