Description
Specifications
- Laser diode: 635 nm visible beam
- Laser class: Class 2
- Accuracy: 1.5mm at 30m (1/16 inch at 100 feet)
- Working range: 800m (2,620 feet) diameter with LS-80L sensor
- Self-leveling range: 5 degrees
- Grade range: -5% to +25%
- Slope matching: 5 degrees
- Operating time: approx. 90 hours with Li-Ion batteries
- Dust and water protection: IP66 rating
- Weight: 2.4 kg (5.3 lbs) with batteries
- Dimensions: 182 x 243 x 212 mm (7.2 x 9.6 x 8.4 inches)
Product Description

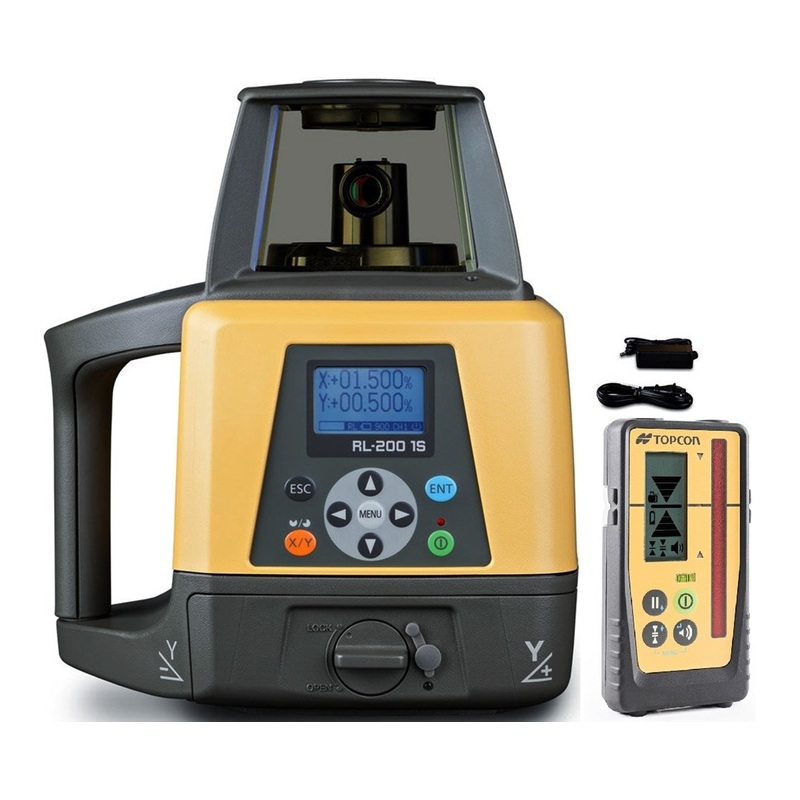

Works on both horizontal and vertical axes, the Topcon RL-200 1S Single Grade Laser is great for geopositioning, land surveying, geospatial monitoring, construction, surveying, layout, foundation and other exterior construction applications. With an accuracy of horizontal 7 arc seconds, this offers an operating range up to 3,600 feet with a laser receiver. Also, it is auto-leveling within 5 degrees and has a wide single grade range of -5 to +25 percent.
When using the beam masking mode, the RL-200 1S allows multiple teams doing measurements from conflicting with other readings. For more accuracy, it comes with adjustable rotation speeds of 300, 600 or 900 rotations per minute. Also, it has a height-of-instrument alert function to prevent errors and mistakes in leveling.
The Topcon RL-200 1S includes a high contrast LCD graphical display that makes it easier to track data. With an IP66 rating, this Topcon grade laser is protected from dust and water splashes. Also, it runs up to 100 hours with dry-cell batteries and up to 90 hours with rechargeable NiMH batteries. As an extra feature, it includes a 5/8-11 tripod thread that is compatible with most tripod brands.
In the Box
- RL-200 1S High Accuracy Slope Laser
- LS-100D Receiver
- Receiver Bracket
- Li-Ion Battery
- Hard Shell Carrying Case
Brochures and Manuals
- RL-200 1S Slope Laser Manual
