Description
Specifications
- Detection: Ferromagnetic objects (iron, steel) up to 16 ft deep
- Technology: HeliFlux sensors with 9.5″ (24 cm) spacing
- Operation: Single-handed membrane switch
- Audio Output: Frequency increases with field intensity
- Visual Output: Signal strength and polarity indication
- Indicators: Battery and sensitivity
- Gain Levels: 4 (Low, Medium, High, Extra High)
- Volume Settings: 3 (Muted, Medium, Maximum)
- Water & Dust Resistance: IP54
- Power Source: 9V battery
- Battery Life: 24 hours (intermittent use)
- Operating Temperature: -13F to 140F (-25C to 60C)
- Overall Length: Open 26″ (66 cm); Closed 15.5″ (39 cm)
- Weight: 2.4 lb (1.1 kg)
- Warranty: 7 years
Product Description

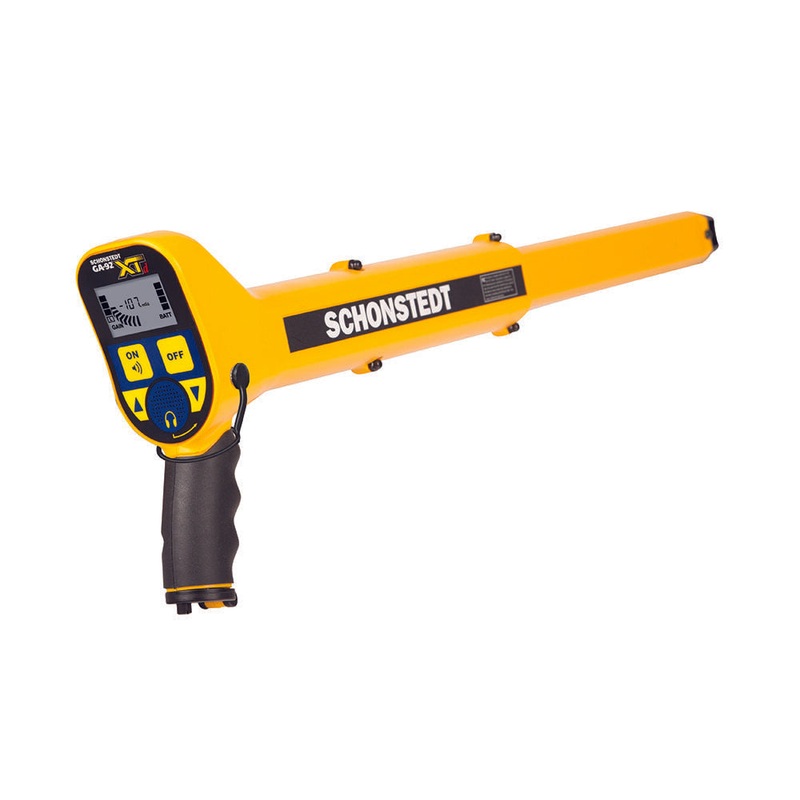

The Schonstedt GA-92XTd Magnetic Locator combines portability, precision, and ease of use for locating ferrous objects up to 16 feet deep. Its compact, foldable design allows it to be carried on your hip, while single-handed operation via a membrane switch ensures efficiency in the field. Using HeliFlux sensors with 9.5-inch spacing, the GA-92XTd provides both audio and visual output with gain, sensitivity, and polarity indicators for accurate detection. IP54-rated for dust and water resistance, its built for rugged jobsite conditions and backed by a 7-year warranty.
In the Box
- Schonstedt GA-92XTd Magnetic Locator
- (1)x 9v Battery
- Holster
- Carrying Case
Brochures and Manuals
- GA-92XTd Magnetic Locator User Manual
