Description
Specifications
- Detection: Ferromagnetic objects (iron, steel)
- Technology: HeliFlux sensors with 20 inch (50 cm) spacing
- Audio Output: Frequency increases with field intensity; idle frequency = 10 Hz
- Display Output: Expanding bar graph shows polarity (+/-) and signal strength
- Battery Indicator: 4-segment LCD
- Gain Levels: 4 (Low, Medium, High, Extra High)
- Gain Memory: Defaults to Medium when powering off/on
- Volume Settings: 3 (Muted, Medium, High)
- Power Source: 9V battery
- Battery Life: 24 hours (intermittent use)
- Operating Temperature: -13F to 140F (-25C to 60C)
- Overall Length: 32.5″ (83 cm)
- Construction: High-impact ABS
- Dust & Water Resistance: IP54
- Weight: 2.6 lbs (1.2 kg)
- Warranty: 7 years
Product Description

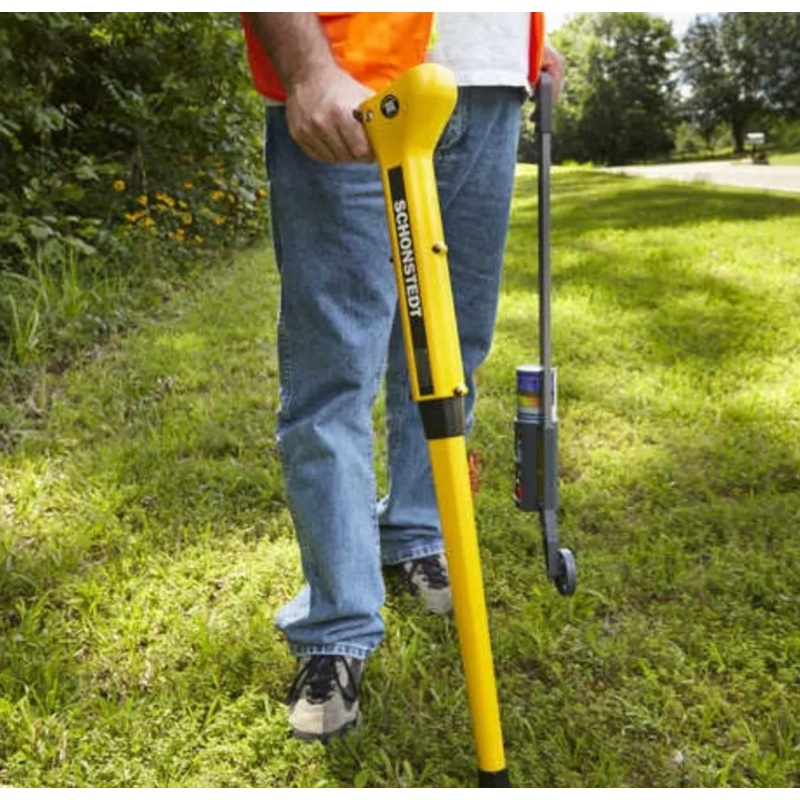

The Schonstedt Maggie Magnetic Locator combines the high sensitivity and precision of the GA-52Cx with the single-handed operation of the GA-92XT. Using HeliFlux sensors spaced 20 inches apart, it detects the magnetic field of ferromagnetic objects and provides both audio and visual target indications. The expanding bar graph displays signal polarity and strength, while the audio tone increases in frequency as you approach a target. Built with an ergonomic, high-impact ABS housing, the Maggie is IP54-rated for dust and water resistance. Supplied with a soft case and sling, its ideal for field use in construction, surveying, and utility locating. Backed by a 7-year warranty.
In the Box
- Schonstedt Maggie Magnetic Locator
- (1)x 9v Battery
- Padded Carrying Case
Brochures and Manuals
- Maggie Magnetic Locator User Manual
