Description
Specifications
- Compatibility: Works with all 5/8 x 11 instruments
- Column Adjustment: Rotates, moves vertically with 12 in (30.48 cm) height adjustment
- Strap: 2 in x 10 ft (5.08 cm x 3.05 m), rated 2200 lbs
- Ratchet: Heavy-duty ratchet system for secure fastening
- Offset: 15 in (38.1 cm) stud centerline to column
- Material: Structural aluminum body, stainless steel hardware
- Weight: 13.75 lb (6.24 kg)
Product Description

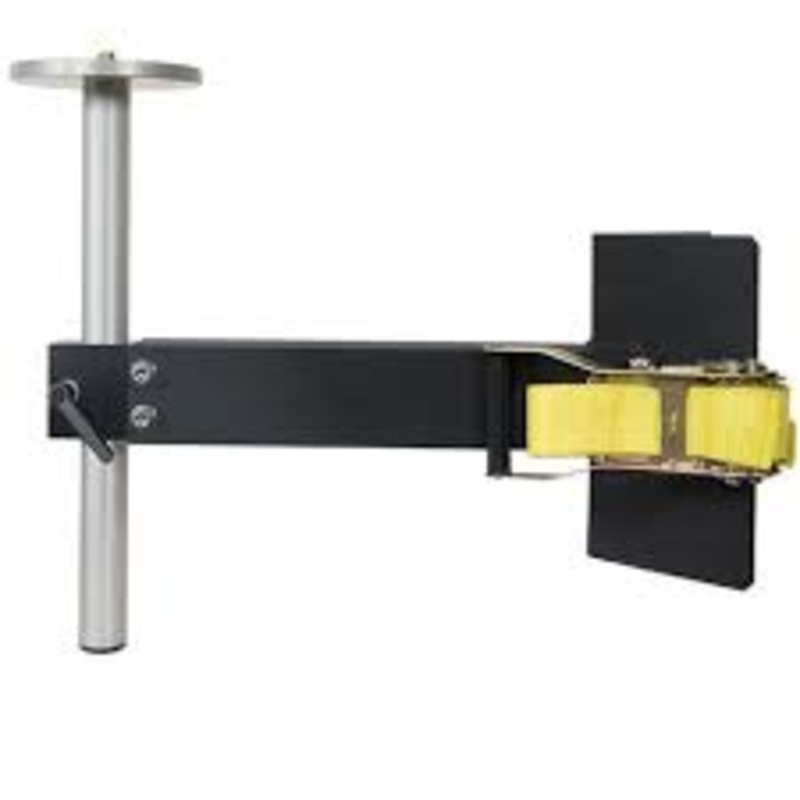

The Seco Heavy-Duty Column Clamp provides surveyors with a solid and stable mounting solution for 5/8 x 11 instruments. Its adjustable column rotates and moves vertically, offering up to 12 inches of height adjustment for precise alignment of total stations, lasers, and other instruments.
The clamp includes a 2-inch by 10-foot strap rated to 2,200 lbs and a heavy-duty ratchet system that firmly attaches to both round and square columns. The 15-inch offset from stud to column provides proper clearance for instrument placement. Made from structural aluminum with stainless steel hardware, the column clamp offers a robust solution.
