Description
Specifications
- Prism Type: 360-degree with 6 corner-cube prisms
- Accuracy: 5 arc-seconds
- Prism Constant: +23.1 mm
- Working Range: 2,000 ft
- Compatibility: Leica robotic total stations
Product Description

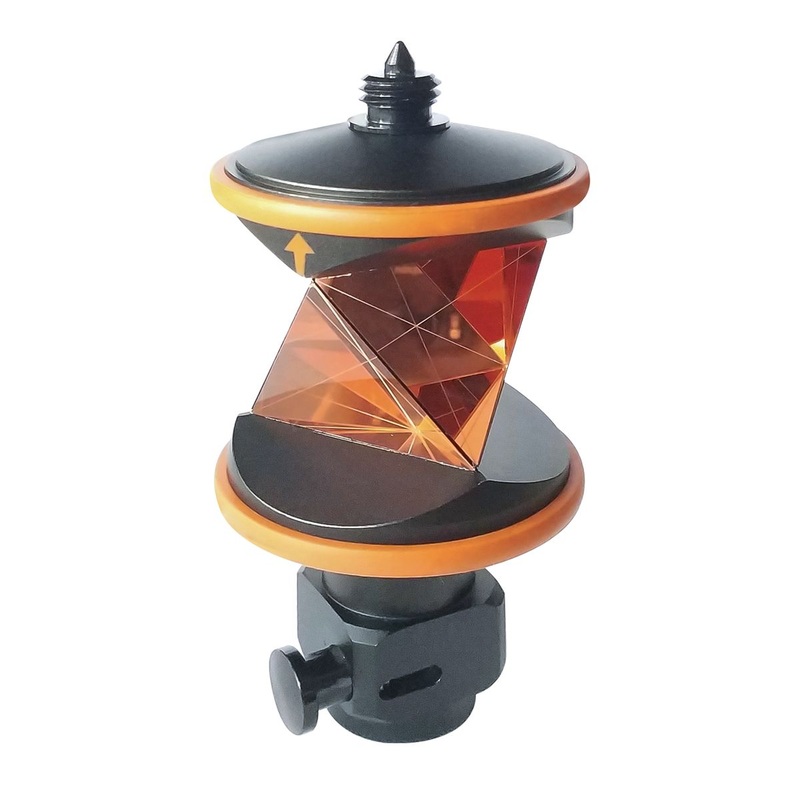

The SitePro GMAX360 360-Degree Pro Prism System delivers high-precision measurement performance for robotic total stations. Featuring six precisely aligned corner-cube prisms, it reflects measuring beams back to the source from any direction, ensuring consistent accuracy and tracking. With a +23.1 mm constant and 5-second angular accuracy, it offers reliable results at working ranges up to 2,000 ft (600 m). Compatible with Leica instruments, it provides dependable performance in demanding survey conditions.
In the Box
- Prism
- Protective Wrap
- Padded Case
