Description
Specifications
- Compatibility: Leica systems
- Design: Six-prism bonded 360-degree assembly
- Constant: +28.1mm
- Centering Accuracy: 2.0mm
- Working Range: Up to 2000 ft (600 m)
- Thread Mount: 5/8-11 with quick-release adapter
- Prism Height: 86 mm (with quick-release adapter)
- Applications: Robotic total stations, automated survey workflows
Product Description

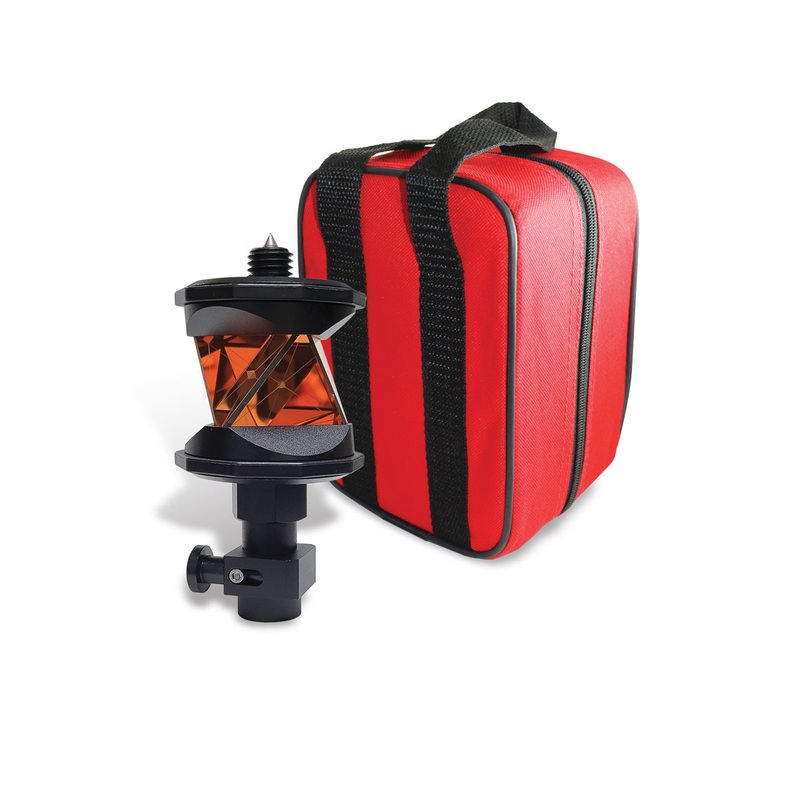

The SitePro 360 Robotic Prism System is built for full-circle coverage for robotic total stations. The prism assembly consists of six precisely aligned prisms that ensure uninterrupted tracking and measurement in automated surveys.
Compatible with Leica systems, this 360 prism features a +28.1mm constant, 2.0mm centering accuracy, and a working range of up to 2,000 feet (600 meters). The system includes a 5/8-11 mounting thread and a quick-release adapter, making setup fast and secure. With an 86mm prism height and durable housing, it offers dependable accuracy and long-term stability for robotic surveying workflows.
In the Box
- 360 Robotic Prism System
- Protective Padded Wrap
- Padded Carrying Case
