Description
Specifications
- Prism Offset: 0/-30 mm
- Accuracy: 5 arc seconds
- Optical Plummet: 2.5x Magnification, Twist focus
- Over-Point Accuracy: 0.5 mm at 1.5 m
- Vial: 60-second adjustable plate vial
- Rotation: 360
- Prism Compatibility: 24.9 mm bayonet base
- Adjustable Height Range: 100 mm to 120 mm
- Use: Precision setups and traversing applications
Product Description

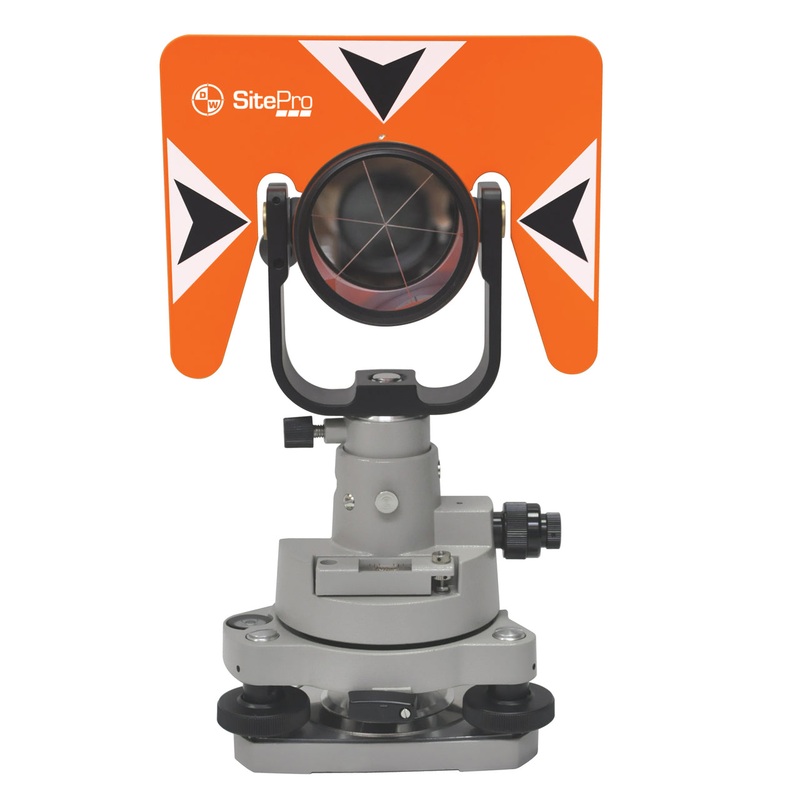

The SitePro 3511K Complete Traverse Adapter System provides surveyors with precise, stable setups for traversing and alignment applications. Featuring a 0/-30mm tilting prism system with 5-second accuracy, this system ensures exceptional performance in both field and control-point surveys. Its 2.5X twist-focus magnification allows clear sighting and accurate targeting, achieving 0.5mm over-point precision at 1.5m.
The 3511K includes a 60-second adjustable plate vial for reliable leveling and a 360 rotating base for full orientation flexibility. The adjustable height range of 100120mm offers compatibility with a wide range of prisms, including 24.9mm bayonet base models. The anodized components and high-quality construction ensure long-lasting performance.
In the Box
- Tribrach Adapter (3511)
- Tribrach (1201)
- Prism System (1010-O)
- Padded Hard Case
