Description
Specifications
- Platform Size: 6-inch flat platform with 5/8-11 thread stud
- Clamp Range: Fits round or square columns
- Column Height Adjustment: 12 inches (30.48 cm)
- Stud-to-Column Distance: 15 inches (38.1 cm)
- Strap Size: 2 inches x 10 feet (5.08 cm x 3.05 m)
- Load Rating: 2,200 lbs (1,000 kg)
- Material: Structural aluminum with stainless steel hardware
- Weight: 13.8lbs
Product Description

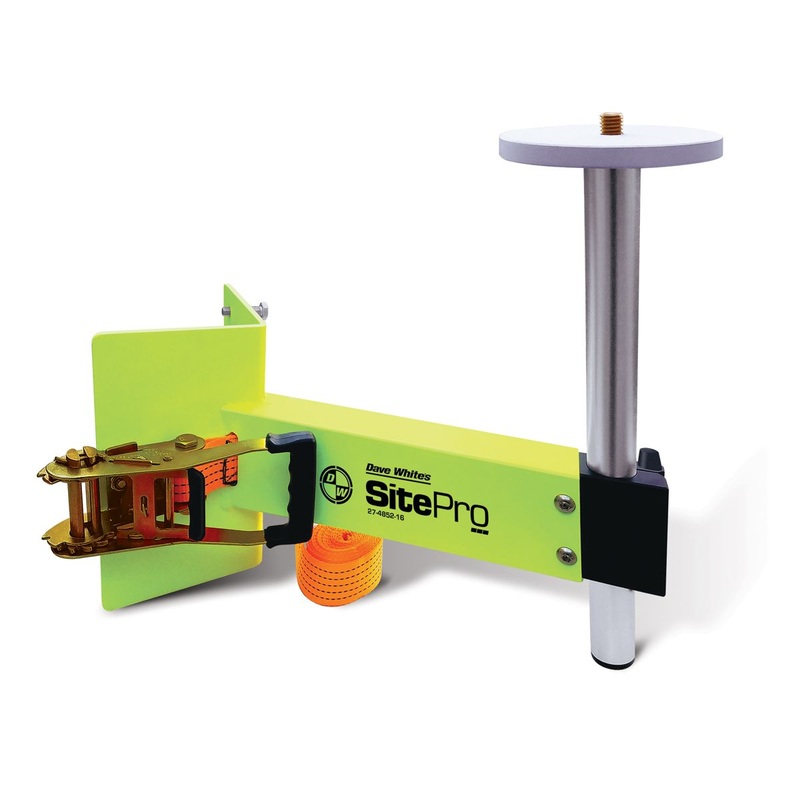

The SitePro Heavy-Duty Column Clamp provides a stable, adjustable platform for mounting surveying instruments with a 5/8-11 thread. Designed for use on round or square columns, it features a 12-inch adjustable column height and a 6-inch flat mounting platform. Built from structural aluminum with stainless steel hardware, it includes a 10 ft (3.05 m) ratchet strap rated to 2,200 lb (1,000 kg) for secure attachment. A rubber bumper protects hands and surfaces during setup, making it ideal for industrial and construction applications.
In the Box
- Column Bracket with Clamp
- Platform
- Column, Strap
- Quick Guide
