Description
Specifications
- Color: Orange
- Prism Diameter: 62 mm precision ground glass
- Accuracy: Up to 2 arc seconds
- Offset Constant: 0 mm / -30 mm
- Canister Type: Nitrogen (N) sealed, prevents condensation
- Holder Material: High-grade aluminum
- Locking Mechanism: Front lever lock for prism stability
- Target Size: Dual-sided, 6.9″ 5.5″ (17.6 14 cm)
- Mounting Thread: 5/8-11 stainless-steel bayonet adapter (female)
- Protective Case: Sold separately
- Applications: High-precision surveying and alignment
Product Description

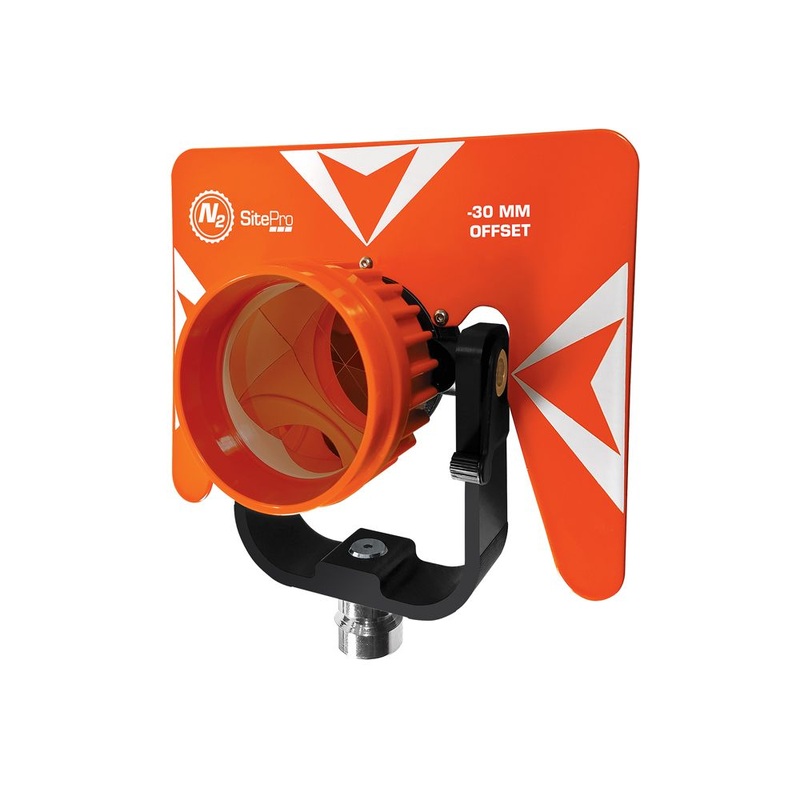

The SitePro 9300 Nitrogen-Filled Single Tilting Prism System is designed to meet demanding field requirements. Featuring a 62 mm precision ground glass prism, it offers up to 2-arc-second accuracy with a selectable 0 or -30 mm offset. The nitrogen-sealed canister prevents condensation on the lens.
Housed in a high-grade aluminum holder, the prism assembly includes a front lever locking mechanism that secures it in position for stable readings. The dual-sided aluminum target (6.9″ 5.5″) enhances visibility, while the 5/8-11 stainless-steel bayonet adapter provides a reliable connection to compatible poles or tribrachs.
In the Box
- Prism System
- Prism Cap
