Description
Specifications
- Prism Type: 2.5 in (62.5 mm) copper-coated prism
- Accuracy: 5 seconds
- Offset Positions: 0 mm and -30 mm
- Tilting Axis Height: 115 mm
- Mounting Threads: M20x2 thread, 5/8-11 bayonet adapter
- Holder: All-metal construction
- Target: 5.5 7 in (14 17.8 cm), flo-orange and black
- Adjustment: Stainless-steel tension knob
- Applications: Surveying and alignment with total stations
Product Description

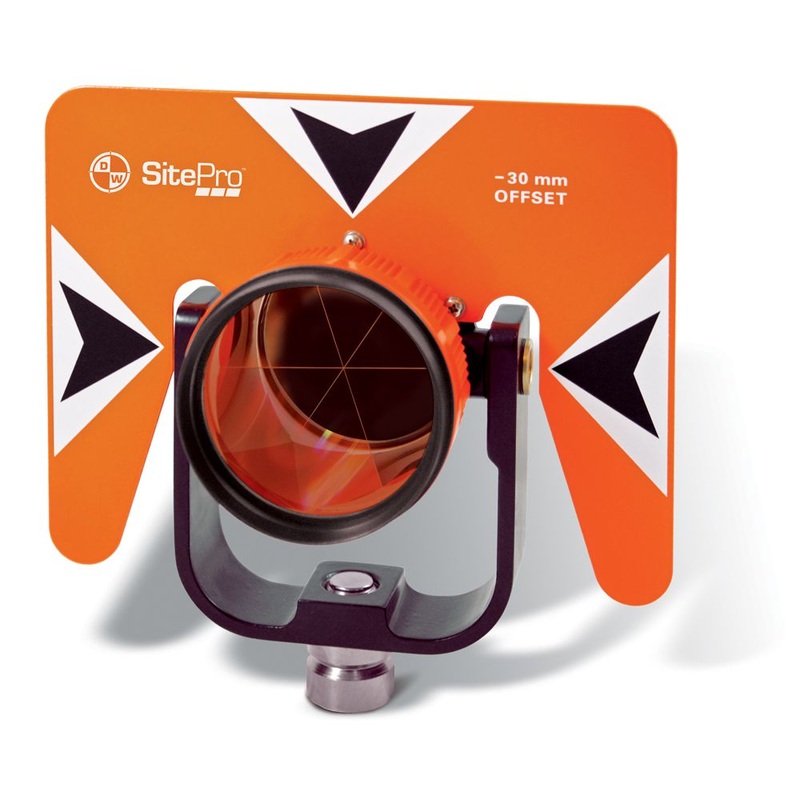

The SitePro 1010-Series Single Tilting Prism System delivers precision and reliability for surveying and alignment applications. It features a 2.5″ (62.5 mm) copper-coated prism with 5-second accuracy, securely housed in a weatherproof canister to ensure consistent performance in challenging conditions. The prism assembly tilts on a 115 mm axis and can be set to either 0 mm or -30 mm offset.
The system includes a durable all-metal holder, a 5.5″ 7″ (14 17.8 cm) fluorescent orange and black target, and a stainless-steel tension knob for secure adjustment. With an M20x2 mounting thread and 5/8-11 bayonet adapter, it is fully compatible with leading total stations. A padded carrying case protects the prism during transport and storage.
In the Box
- Prism
- Target
- Holder
- Cap
- Carrying case
