Description
Specifications
- Prism Diameter: 62 mm circular prism
- Accuracy: Less than 2″ beam deviation, 2.0 mm centering accuracy
- Range: Up to 11,500 ft (3,500 m)
- Constant: 0 mm
- Prism Coating: Copper with special resistant coating
- Mount: Metal holder with detachable target
- Target Design: Dual color black/flo-green and black/flo-red with sight alignment
- Applications: High-accuracy and long-range total station surveys
Product Description

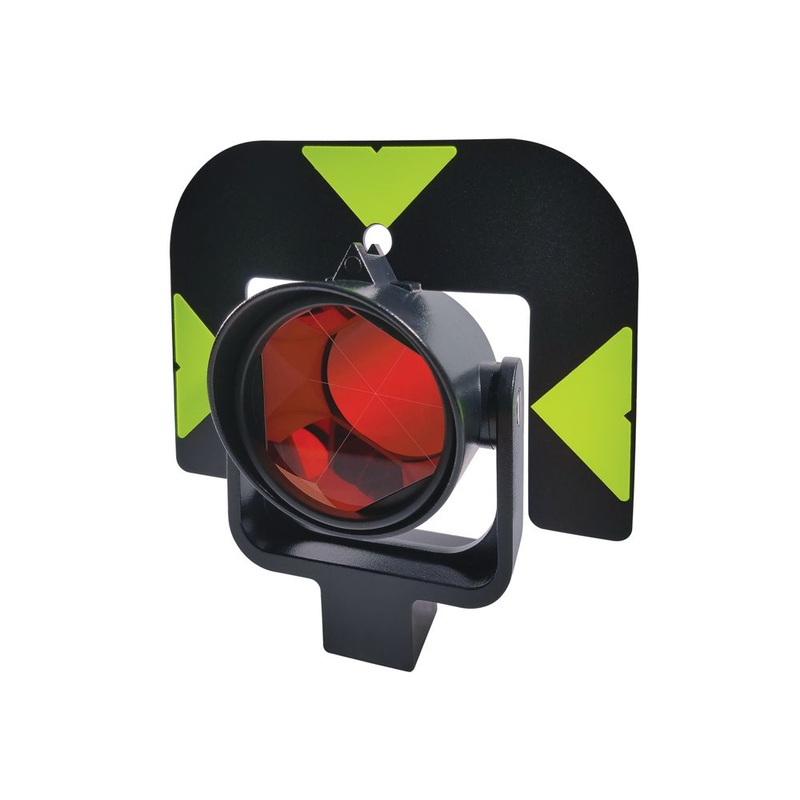

The SitePro LPR121 Swiss-Style Pro Precision Circular Prism System provides accuracy and extended range for high-performance surveying applications. The 62 mm copper-coated prism features a special resistant coating to maintain high reflectivity while preventing signal interference from small particles or moisture. It offers less than 2″ beam deviation and 2.0 mm centering accuracy at ranges up to 11,500 ft (3,500 m).
The prism is securely mounted in a robust metal holder and includes a detachable reversible target with black/flo-green and black/flo-red sides for high visibility. With a 0 mm constant and fine alignment capability, its ideal for precise measurement and long-range control point work.
In the Box
- Prism System
- Prism Cap
