Description
Specifications
- Pipe Compatibility: 2″ MPT 2 x 11-1/2 TPI
- Adapter Diameter: 3.20 in (8.19 cm)
- Overall Height: 3.036 in (7.71 cm)
- Mounting Stud: Removable brass 5/8-11 male stud, azimuth adjustable
- Tilt Adjustment: 7 via three leveling screws
- Height Above Pivot: 1.37 in (3.50 cm)
- Height Below Stud Shoulder: 0.463 in (1.18 cm)
- Markings: Engraved axis height
- Applications: GNSS, survey monuments, and control points
Product Description

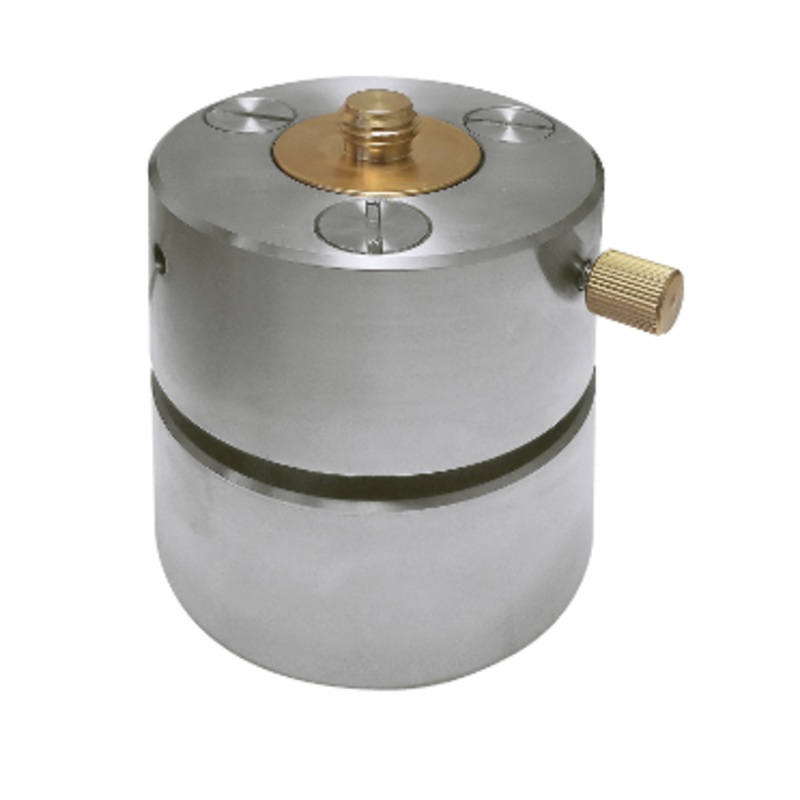

The SitePro Tilt Monument Mount for 2-Inch Pipe provides a stable and adjustable base for precision GNSS or surveying instrument installations. Featuring a removable brass 5/8-11 stud, it allows azimuth adjustment and secure positioning with dual set screws. The adapter levels through three screws, offering a 7 tilt range for accurate setup on uneven terrain.
The mount has a 3.20-inch diameter and a total height of 3.036 inches, with engraved axis height markings for quick reference. Designed for 2-inch MPT 2 x 11-1/2 TPI pipes, it delivers consistent performance and easy calibration in permanent or semi-permanent monument setups.
In the Box
- Mount
- 5/8-11 Male Stud
