Description
Specifications
- Magnification: 24x
- Dampening: Air
- Accuracy: 2.0 mm (Standard Deviation, 1 km double run leveling)
- Leveling Accuracy @ 50 m: 1.2 mm
- Telescope Aperture: 30 mm
- Telescope Image: Erect
- Field of View: 120
- Shortest Focus Distance: 0.65 m (2.13 ft)
- Stadia Constant: 100
- Addition Constant: 0
- Dimensions (L x W x H): 5.2 x 7.5 x 5.3 in. (103 x 190 x 135 mm)
- Instrument Weight: 3.5 lb (1.6 kg)
- Case Weight: 2.75 lb (1.25 kg)
Product Description

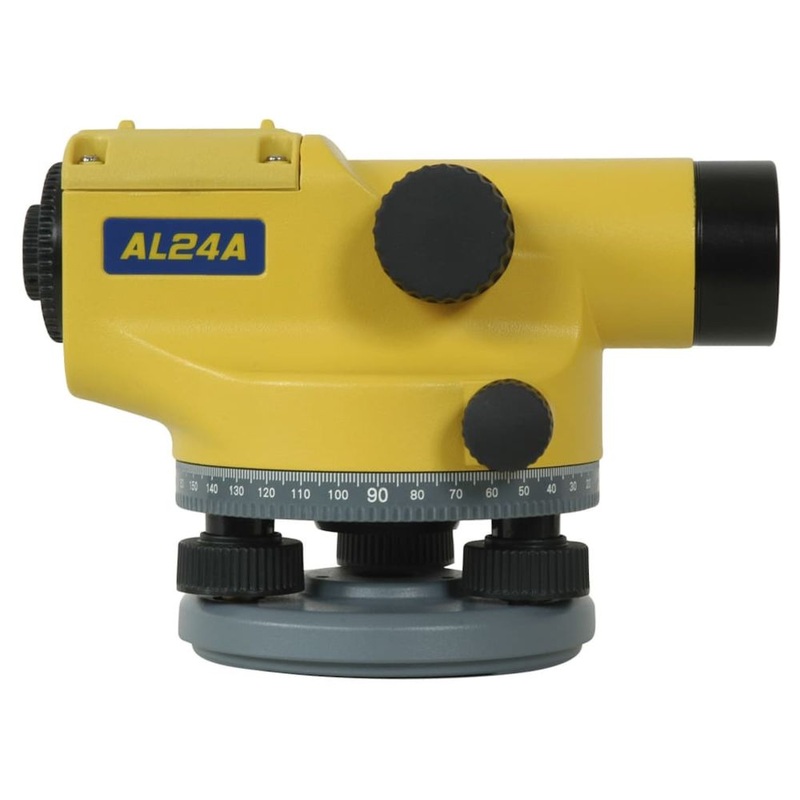

The Spectra Precision AL24A Automatic Level delivers reliable accuracy and stability for a wide range of elevation control and alignment applications. Featuring a 24x magnification and an air-dampened compensator, this instrument is ideal for achieving high precision over longer distances. The bright, sharp optics provide clear viewing even in low-light conditions, while the short focusing distance enables efficient work in confined areas or on steep slopes.
Its rugged metal housing, water-resistant construction, and built-in bubble mirror ensure dependable performance in harsh jobsite conditions. Continuous horizontal tangent drives allow smooth, precise target alignment from either side, and stadia lines on the reticle make distance measurement quick and easy. The AL24A is ideal for general building, cut and fill, area leveling, and landscaping tasks.
In The Box
- AL24A Auto Level
- Allen wrench
- Pin tool
- Rain cover
- Plumb bob
- Hard Carry Case
