Description
Specifications
- Laser Model: Spectra Precision GL1425C Dual Grade Laser
- Laser Class: Class 2, 630643 nm
- Accuracy: 1/16 in @ 100 ft (1.5 mm @ 30 m)
- Grade Range: 9% without tilt, 15% with tilt
- Self-Leveling Range: 5 (8.7%)
- Working Range: Up to 2,600 ft (800 m) diameter
- Rotation Speeds: 300, 600, 900 RPM
- Environmental Rating: IP66, drop-resistant up to 1 m
- Power Source: NiMH rechargeable battery pack
- Operating Hours: 45 hours (NiMH)
- Operating Temperature: -4F to +122F (-20C to +50C)
- Weight: 7.7 lbs. (3.49 kg) with battery
- Warranty: 5 years
CR700 Combined Machine Receiver
- Working Range: Up to 1,500 ft (460 m) radius (laser dependent)
- Laser Detection Height: 5 inch
- Numeric Readout Height: 4 inch
- Reception Angle: 200
- Strobe: Anti-Strobe
- Automatic Shut off: 30 minutes
- Environmental Rating: IP67
- Power Source: (3)x “AA” Batteries
- Operating Hours: 60+ hours; 16 continuous backlight
- Operating Temperature: -4F to +140F (-20C to +60C)
- Weight: 16.6 oz.
- Warranty: 3 years

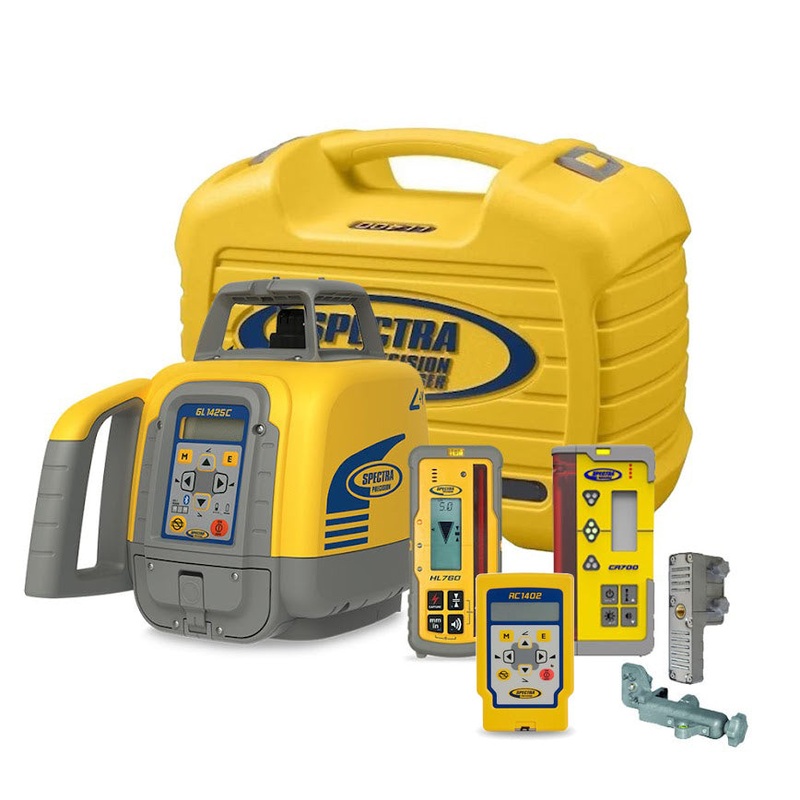

Product Description
The Spectra GL1425C Dual Grade Laser Bundle offers a complete solution for grading, excavation, and concrete work. Featuring automatic self-leveling in horizontal, vertical, and grade modes, the GL1425C delivers dependable results for ramps, drainage, formwork, and vertical alignment applications. The GL1425C delivers accuracy of 1.5 mm at 30 m (1/16 in at 100 ft) and operates across a working diameter of up to 800 m (2,600 ft). Equipped with the HL760 receiver, PlaneLok, and Grade Match functions, the system eliminates manual slope calculations and drift errors for efficient setup. The included RC1402 radio remote control and Bluetooth smartphone connectivity provide flexible control options across large jobsites.
The GL1425C withstands 1 m drops onto concrete, tripod tip-overs, and carries an IP66 environmental rating. The bundle adds the CR700 Combination Receiver, which works both as a machine-mounted display for small excavators, skid steers, and backhoes, and as a grade rod receiver. Its rugged IP67 housing, bright LED indicators, magnetic machine mount, and multiple accuracy settings make it a versatile solution for earthmoving, excavation, and alignment tasks. With long battery life and a full kit of accessories, this bundle is ready for daily heavy-duty use.
In the Box
- GL1425C Dual Grade Laser
- HL760 Laser Receiver with C70 Adapter
- Vertical Adapter for HL Receiver (105516)
- RC1502 Radio Remote Control
- NiMH Rechargeable Batteries *B10)
- Worldwide Charger (CH10)
- Carrying Case
- CR700 Spectra Receiver w/Rod Clamp and Magnetic Mount
