Description
Specifications
LL500 Specifications
- Laser Type: Class 2, 670nm
- Beam Color: Red
- Operating Range: Up to 1,600 feet (500 meters)
- Leveling Accuracy: 1/16 inch per 100 feet
- Tripod Attachments: 5/8×11 Horizontally
- Temperature Compensation: Yes
- Water and Dust Resistance: IP54 rating
- Power Source: Alkaline Battery
- Battery Life: Up to 175 hours
- Operating Temperature: -4F to 122F (-20C to 50C)
- Warranty: 5 years
HL700 Receiver Specifications
- Digital Readout Units: mm, cm, ft, in, frac. in
- Reception Height: 5 inch
- On-grade Sensitivities: 6
- Power Source: Alkaline Battery
- Operating Hours: Up to 60 hours
- Auto Shut-off: 30 minutes
- Water and Dust Resistance: IP67 rating
- Operating Temperature: -4F to 122F (-20C to 50C)
- Warranty: 3 years
Product Description

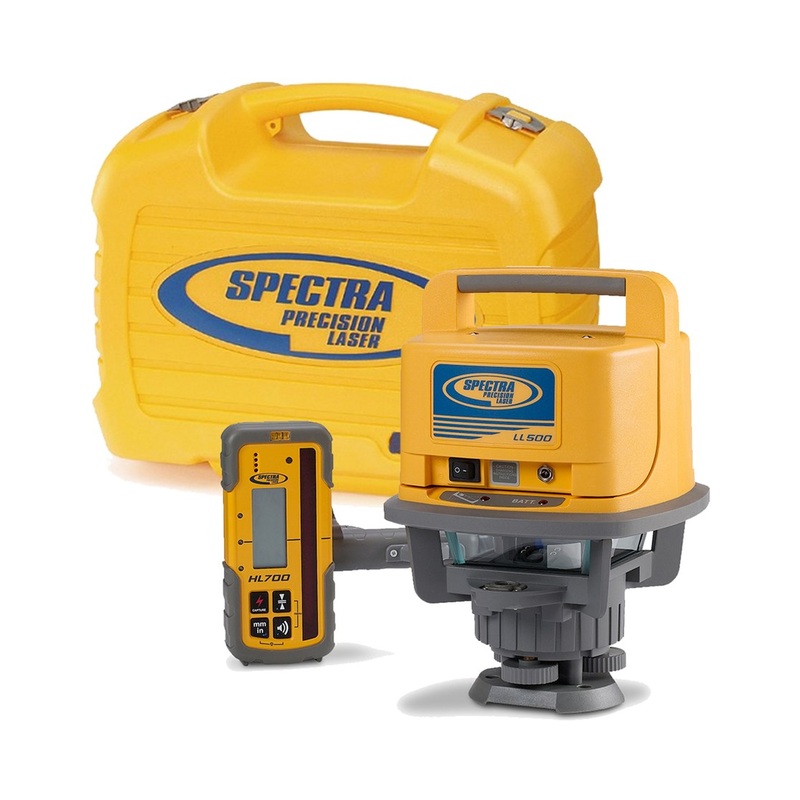

The Spectra Precision LL500 is a long-range, one-person leveling solution built for large job sites that demand high accuracy and reliability. With a working diameter of up to 1,650 feet (500 meters), the LL500 boosts job site efficiency by minimizing the need for multiple setups.
This fully self-leveling laser emits a consistent 360-degree horizontal reference, making it ideal for concrete work, elevation checks, and general site prep. The LL500 allows one operator to handle tasks typically requiring two peoplejust pair it with a laser receiver like the HL700 for instant elevation readings. The LL500 also features temperature compensation to maintain accuracy even through significant environmental changes.
Whether mounted on a tripod or working across varying terrain, the LL500 delivers consistent performance, automatic shut-off when disturbed, and high-accuracy results across large areas, helping reduce errors and rework while keeping your project on track.
In the Box
- LL500 Laser Level
- HL700 Receiver with Adapter C70
- (4)x D-Cell Alkaline Batteries
- Carrying Case (1046-4750S)
