Description
Specifications
- Laser Model: Spectra Precision GL1425C Dual Grade Laser
- Laser Class: Class 2, 630643 nm
- Accuracy: 1/16 in @ 100 ft (1.5 mm @ 30 m)
- Grade Range: 9% without tilt, 15% with tilt
- Self-Leveling Range: 5 (8.7%)
- Working Range: Up to 2,600 ft (800 m) diameter
- Rotation Speeds: 300, 600, 900 RPM
- Environmental Rating: IP66, drop-resistant up to 1 m
- Power Source: NiMH rechargeable battery pack
- Operating Hours: 45 hours (NiMH)
- Operating Temperature: -4F to +122F (-20C to +50C)
- Weight: 7.7 lbs. (3.49 kg) with battery
- Warranty: 5 years
CR700 Combined Machine Receiver
- Working Range: Up to 1,500 ft (460 m) radius (laser dependent)
- Laser Detection Height: 5 inch
- Numeric Readout Height: 4 inch
- Reception Angle: 200
- Strobe: Anti-Strobe
- Automatic Shut off: 30 minutes
- Environmental Rating: IP67
- Power Source: (3)x “AA” Batteries
- Operating Hours: 60+ hours; 16 continuous backlight
- Operating Temperature: -4F to +140F (-20C to +60C)
- Weight: 16.6 oz.
- Warranty: 3 years
Product Description
The GL1425C Mini Excavator kit combines the power of Spectras dual grade laser with machine control and jobsite essentials for small equipment applications. The GL1425C dual grade laser provides 1.5 mm accuracy at 30 m and covers a working diameter up to 800 m, making it ideal for grading, concrete work, ramps, and drainage. The HL760 receiver with C70 clamp adds PlaneLok and Grade Match functions, removing manual slope calculations and eliminating drift. Operators can control the laser via the RC1402 remote or Bluetooth app for flexible jobsite management.
Built to withstand the toughest conditions, the GL1425C is IP66 rated and drop-resistant. The CR700 Combination Receiver extends functionality to machine control, attaching easily via its magnetic mount or rod clamp to mini excavators and compact loaders. It delivers real-time digital readout and LED guidance directly in the cab, boosting safety and productivity. Paired with the included aluminum tripod and 9-ft grade rod, this bundle equips surveyors and contractors with a rugged, all-in-one solution for efficient excavation, layout, and slope work.

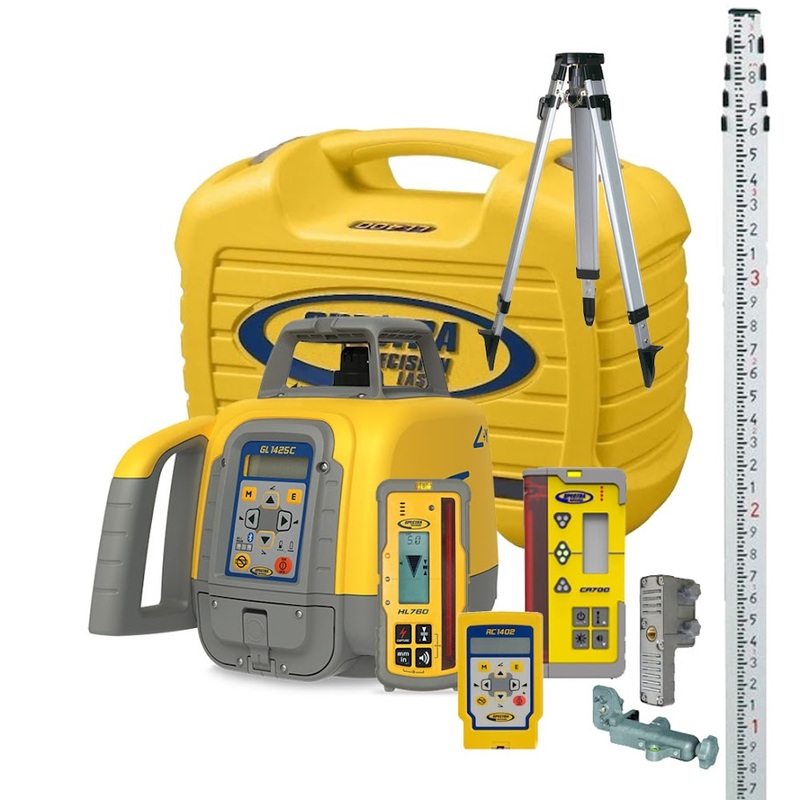

In The Box
- GL1425C Dual Grade Laser
- HL760 Laser Receiver with C70 Adapter
- Vertical Adapter for HL Receiver (105516)
- RC1402 Radio Remote Control
- B10 NiMH Rechargeable Batteries
- CH10 Worldwide Charger
- Carrying Case
- Universal Contractor’s Aluminum Tripod (Black)
- CR700 Spectra Receiver w/Rod Clamp and Magnetic Mount
- Tiger Supplies 9′ Grade Rod (Inches)
Brochures and Manuals
- GL1425C Grade Laser Manual
- CR700 Combination Laser Receiver Manual
