Description
Specifications
- Leveling accuracy: 1.5 mm/30 m, 1/16 @ 100 ft, 10 arc seconds
- Operating diameter: appr. 500 m (1600 feet)
- Self-leveling range: 11 arc minutes
- Temperature Compensation: Yes
- Laser type: 670 nm
- Laser class: Class 2
- Power source: 4x D-Cell Alkaline or NiMH batteries
- Battery life: 100 hours NiMH
- Operating temp.: -4F to 122F (-20C to 50C)
- Dust and waterproof: Yes – IP54
Product Description

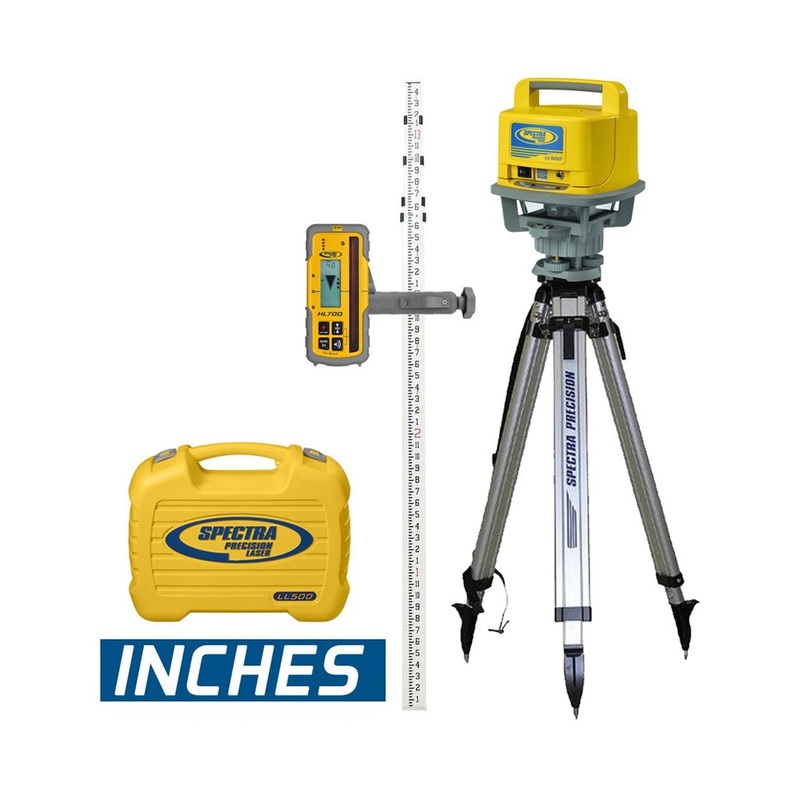

The Spectra Precision LL500-2 is a self-leveling rotary laser that comes with an HL700 receiver, alkaline battery, tripod, and a 15-foot grade rod marked in feet and eighths. It also includes a tripod case for easy transport and storage. This laser is designed for outdoor use and can project a highly visible laser beam over long distances, making it ideal for large-scale construction and excavation projects. The LL500-2 model specifically uses a grade rod marked in feet and eighths, providing greater precision and accuracy for certain applications.
In The box
- LL500 Laser Level
- HL700 Receiver with Clamp C70
- 4 x D-Cell Alkaline Batteries
- 1046-4750S Carrying Case
- 2161 Tripod Heavy Duty Aluminium
- GR152 Grade Rod Inches 15FT
Brochures and Manuals
- LL500 Self-Leveling Rotary Laser Manual
