Description
Specifications
- Laser Class: Class 2, <1mW, 520 nm green beam
- Accuracy: 1/8 in @ 30 ft (3 mm @ 10 m)
- Self-Leveling Range: 3 (0.5 tolerance)
- Range (visible): 115 ft (35 m)
- Range (with receiver): 250 ft (75 m)
- IP Rating: IP54 (dust/splash resistant)
- Power Source: (4)x AA batteries
- Operating Hours: Up to 20 hours
- Operating Temperature: 14F to 113F (-10C to +45C)
- Storage Temperature: -4F to 140F (-20C to +60C)
- Tripod Threads: 1/4-20 and 5/8-11
- Dimensions: 4.72 x 2.36 x 4.72 in (120 x 60 x 120 mm)
- Weight: 1.2 lbs. (0.6 kg)
- Warranty: 2 years
Product Description

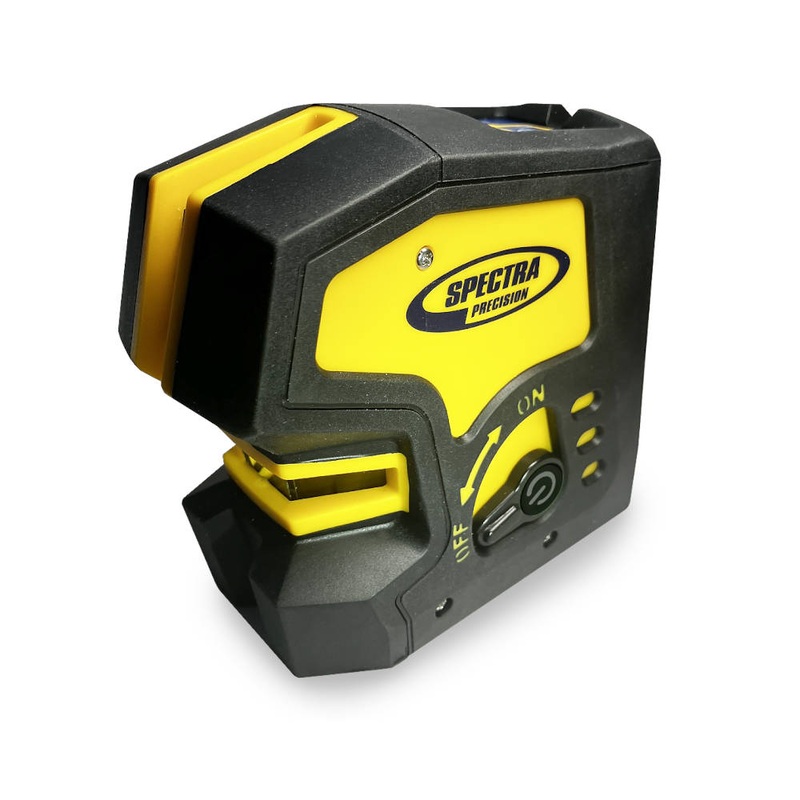

The Spectra Precision LT20XG Cross Line Laser is a reliable interior alignment tool designed for professional contractors and remodelers. With one horizontal and one vertical green laser plane, it delivers bright, ultra-visible lines that simplify wall layout, acoustical ceiling installation, finish carpentry, and other alignment tasks. Its automatic self-leveling feature ensures fast, accurate setups with minimal user adjustment.
The LT20XG features a rugged over-molded housing with IP54 build that withstands drops and daily wear. The wide fan beam provides maximum coverage, while 20-hour runtime on standard AA batteries keeps you productive. The included accessoriesmounting bracket, target, strap, and pouchensure the laser is ready for a wide range of applications straight out of the box.
In the Box
- LT20XG Crossline Laser
- Bracket
- Target
- Pouch
- Alkaline Batteries
Brochures and Manuals
- Spectra Precision LT20XG Green Beam Crossline Laser User Manual
