Description
Specifications
- Range: Up to 100ft
- LED indicators: Green (On-Grade), Red (High), Blue (Low); 3 brightness levels
- Display: 2.8 inch IPS touchscreen; scratch-proof
- Power Source: (2) AA batteries or external 1030V DC input
- Operating Hours: Up to 20 hours
- Durability: IP67
- Operating Temperature: -4F to 140F (-20C to +60C)
- Dimensions: 6.6 x 3.0 x 1.4 (168 x 76 x 36 mm)
Product Description

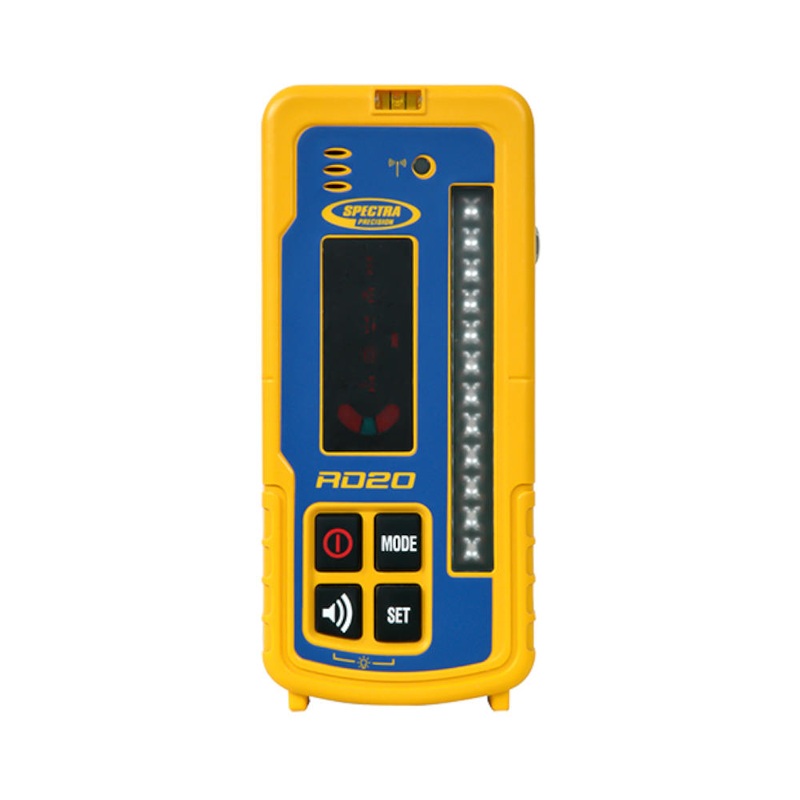

The Spectra Precision RD20 Wireless Remote Display enhances machine control by delivering real-time grade information directly to the operator inside the cab. Designed to work seamlessly with Spectra LR30W, LR50Wand the LR60W wireless receivers, the RD20 eliminates the need for constant visual contact with the receiver mounted outside the machine.
Featuring bright, color-coded LEDsgreen for on-grade, red for high, and blue for lowthe RD20 allows easy elevation monitoring, even from the corner of the eye. Audible tones provide additional feedback for hands-free operation, improving safety and productivity. Operators can also remotely adjust receiver settings, match on-grade, or set tilt angles directly from inside the cabstreamlining tasks like benchmarking and sports field construction.
With a wireless working radius of up to 100 feet, multiple mounting options (magnets, tape, quick-disconnect plate), and a waterproof IP67 rating, the RD20 offers flexible, durable performance in harsh jobsite environments.
In the Box
- RD20 Cabin Display
- ATI010561 Car Lighter Adapter Power Cable
- Quick Mounting System
