Description
Specifications
- Laser Class: 2, <1 mW
- Wavelength: 635 nm
- Self-Leveling Range: 5
- Leveling Accuracy: 3/32 in @ 100 ft
- Line Straightness: 1/8 in @ 100 ft
- Plumb Beam Accuracy: 3/32 in @ 100 ft
- Visible Range: 65100 ft indoors
- Range with Receiver: Up to 300 ft (328 ft max)
- Functions: 3 vertical lines, 1 horizontal line, plumb line
- Tripod Connection: 5/8 in 11
- Protection: IP54 (dust/splash resistant)
- Operating Hours: Up to 20 hrs
- Warranty: 2 years
Product Description
The Stabila LA 180L Layout Station is a fully automatic multi-line laser system designed for fast and precise layout over long distances. Featuring AUTO ALIGNMENT technology, the included REC 410 RF receiver communicates wirelessly with the laser to adjust its position automaticallyallowing one person to establish right angles on floors, walls, and ceilings up to 150 ft away. With a working range up to 300 ft using the receiver, it eliminates time-consuming manual setups and costly layout errors.
This layout station projects three vertical and one horizontal 360 line plus a plumb beam, providing complete coverage for square and level reference. The bright laser lines are visible up to 100 ft indoors, while pulsed beams extend performance outdoors with the receiver. Ruggedly built with IP54 environmental protection and a 5/8-11 tripod mount, the LA 180L is supplied with a receiver, target plates, enhancement glasses, batteries, and carrying case.

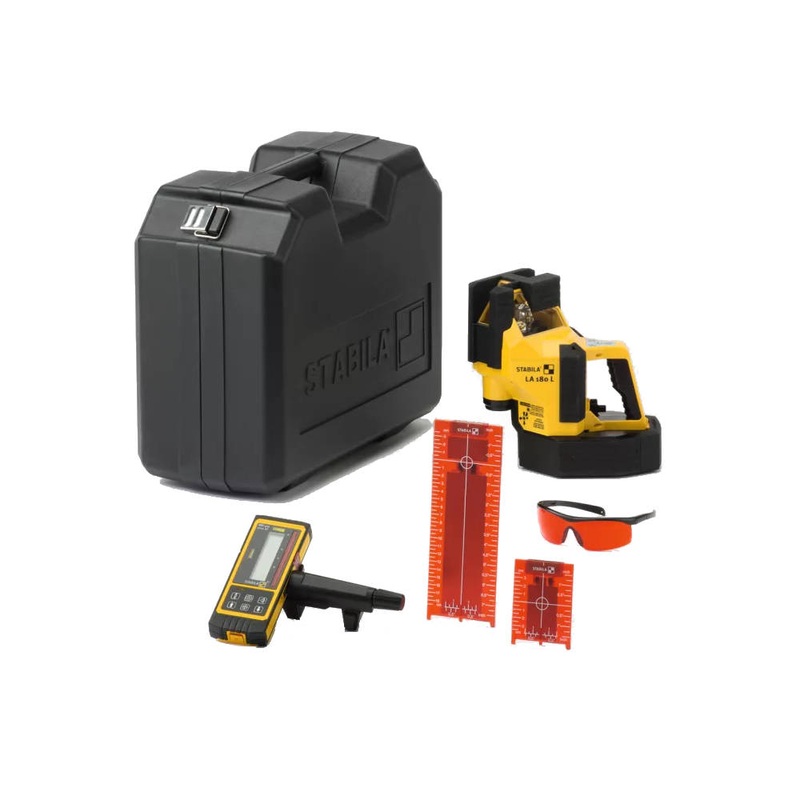

In the Box
- LA 180 L multi-line laser
- REC 410 Line RF receiver with holder
- Laser Goggles
- 2 target plates
- Hard Protective Case
- (4)x D 1.5 V batteries
- (3)x AA 1.5 V batteries
- Stabila LA 180L Multi-line Laser User Manual
